Getting started
Adjusting height

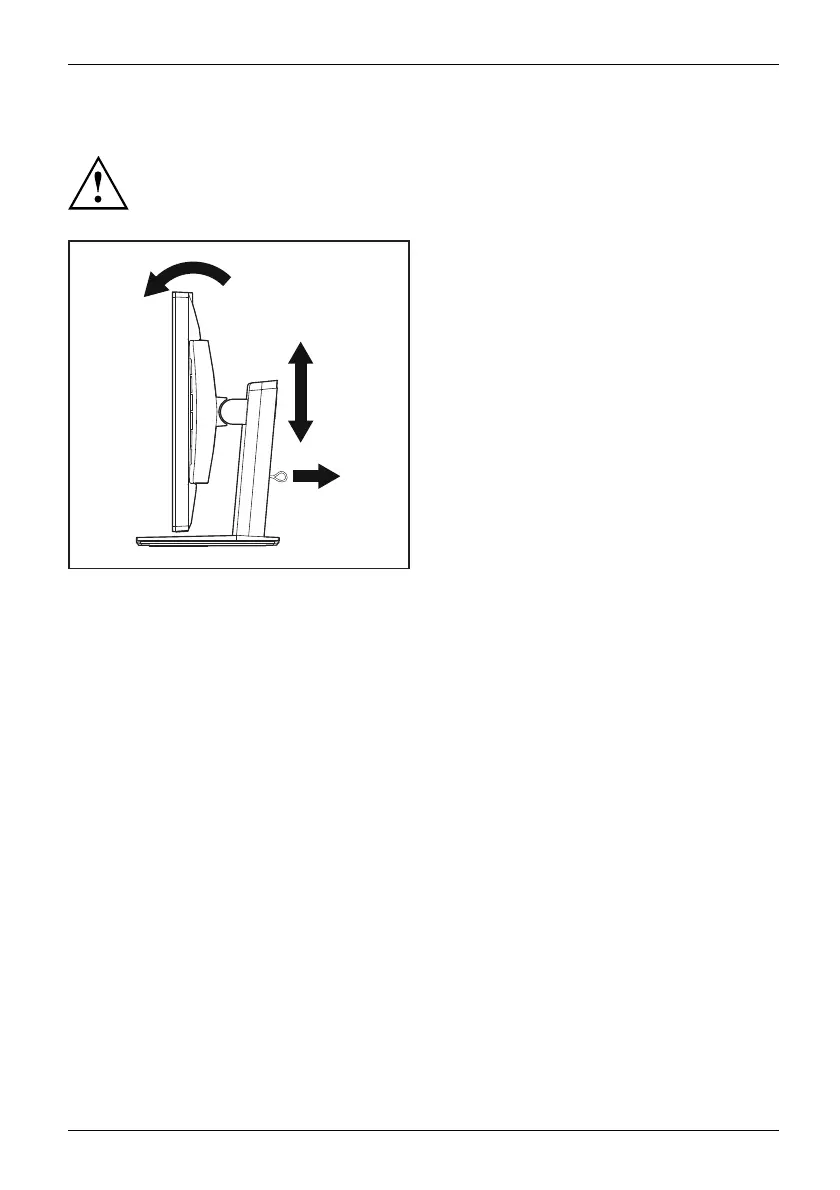

The height adjustment is fi xed in the transport position.
1
2
► To free the fixing, remove the locking
pinontheflange (1).
The height of the monitor can be adjusted
by approximately 130 mm.
► G rasp the monitor with both hands on
the right and left edge of the casing
and move it up or down (2).
Adjusting the i
nclination
The inclination of the monitor can be adjusted by -3° (forwards) and +35°
(backwards) from its vertical position.
► Hold the monitor with both hands on the left and right sides of the casing
and move it to the desired angle.
Adjusting the rotation
The monitor can be rotated by ±170°.
► Grasp the monitor with both han ds on the right and left edge of the casing
and turn it to the desired position.
Fujitsu 15
