Getting started
Connecting cables to the monitor
The data cables supplied have two 15-pin D-SUB conne ctors or tw o 24-pin D VI
connectors for connection to the monitor and to the computer.
Information on the compu ter connections and interfaces is contained in the
operating manual for the computer.

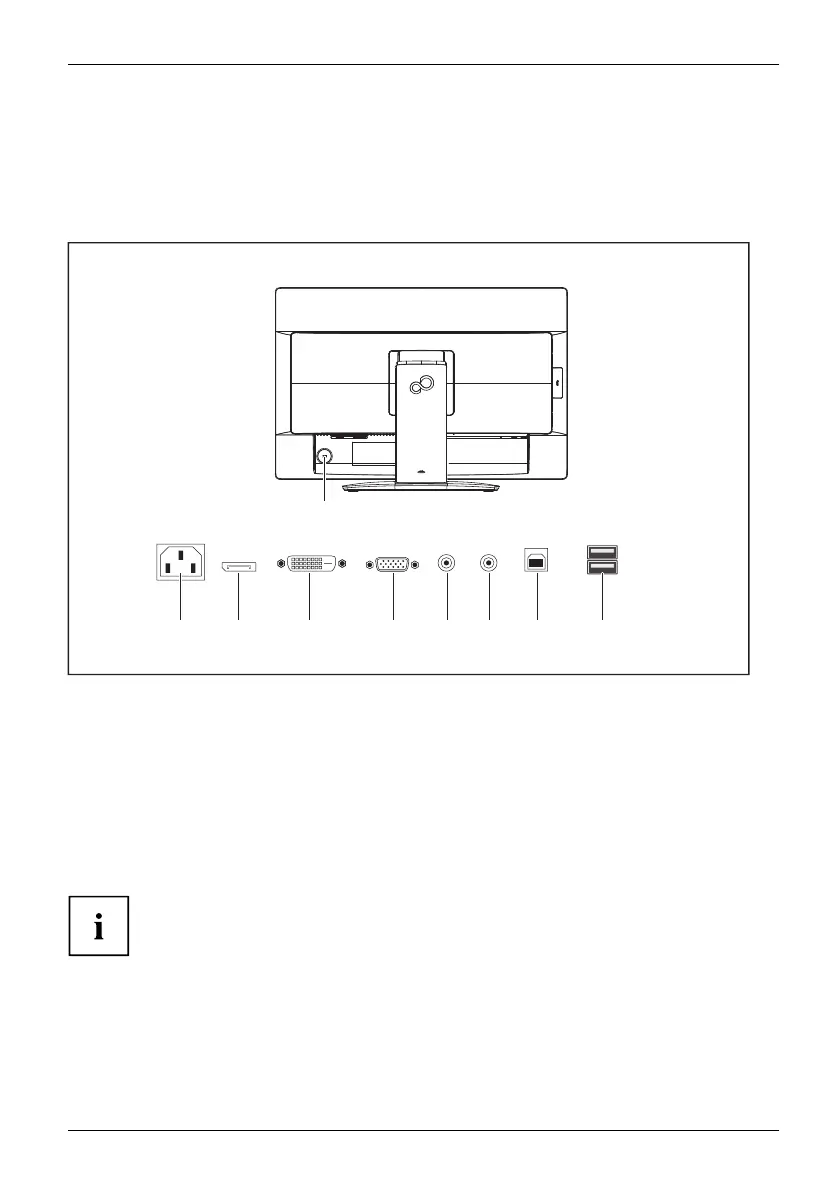

2
1
3 4 5 76 8
9
1 = S ecurity sl ot for "Se curity Lock"
2 = Power connector
3 = DisplayPort socket
4 = DVI-D socket (DVI)
5 = D-SUB socket (VGA)
6 = AUDI O- IN socket
7 = AUDIO- OU T s oc k et
8 = USB 2.0 (upst ream)
9 = USB 2.0 (downstream)
► Select the appropriate data cable for your computer.
► Connect one of the connectors of the data cable to the DVI-D or DisplayPort socket of the
monitor and secure the DVI-D plug-in connection by tighte ning the safety screws.
The monitor automatically detects the input (VGA, DVI, DisplayPort)
when only one signal source is connected.
► Insert one connector of the audio line into the AUDIO IN socket (6) on the
monitor and make sure it is properly engaged.
► Plug the power cable supplied into the power connector of the monitor.
Fujitsu 17
