Technical specification

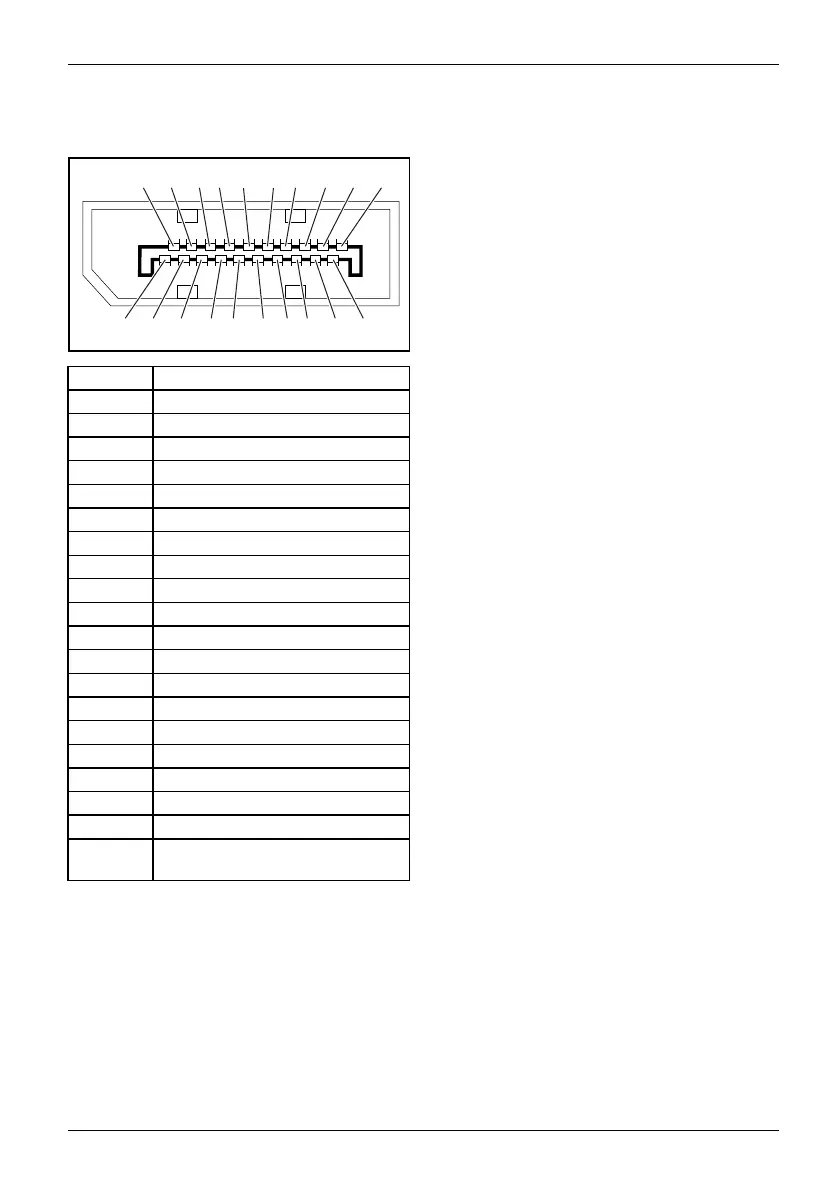

DisplayPort socket
1319 17 15 13 11 9 7 5
2420 19 16 14 12 10 8 6
Pin Meaning
1
Lane 3 (ne gative)
2Earth
3
Lane 3 (positive)
4
Lane 2 (ne gative)
5
Earth
6
Lane 2 (positive
)
7
Lane 1 (ne gative)
8Earth
9
Lane 1 (positive)
10
Lane 0 (nega
tive)
11 Earth
12
Lane 0 (positive)
13
Connected to earth
14
Connect
ed to earth
15
Auxiliary channel (positive)
16 Earth
17
Auxiliary channel (negative)
18 Hot Plug Detect
19
Ret
urn for Power
20
Power for connector
(3.3 V 500 mA)
Fujitsu 39

Fujitsu B24W-7 Specifications

General

Screen Size	24 inches
Resolution	1920 x 1200
Panel Type	IPS
Aspect Ratio	16:10
Brightness	250 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms
Color Support	16.7 million colors
Connectivity	DVI, HDMI, DisplayPort, VGA
Viewing Angles	178° horizontal, 178° vertical
