18 - English Mainboard D3598

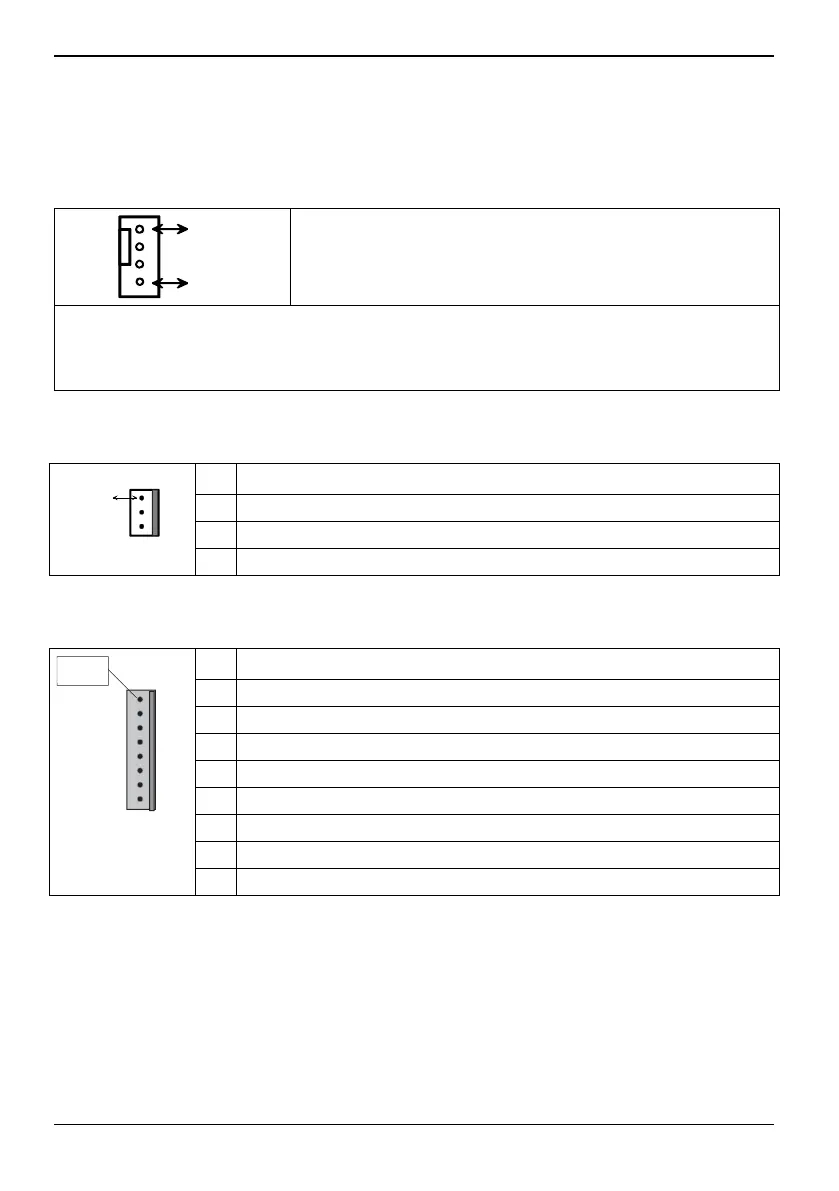

Board installation
Fan connector (internal)
Pin 1
Pin 4
Pin1: GND
Pin2: +12V Power
Pin3: FAN Sense
Pin4: Fan PWM
This 4-pin fan connector supports tachometer monitoring.
There are four 4-pin fan connectors on D3598. Use these connectors to connect chassis and
processor cooling fans to your motherboard. Cooling fans can keep the system stable and reliable for
its product’s life.
Intrusion connector (internal)
PIN Signal
1 GND
2 open
Pin 1
3 Intrusion switch present
PC2009 PSU connector (PC2009)
PIN Signal
1 FASTPROCHOT PSU L
2 PS Fan PWM
3 Not connected
4 PS Fan Sense
5 Not connected
Pin 1
6 Not connected
7 Not connected
8 Not connected
