Mainboard D3598 English - 21

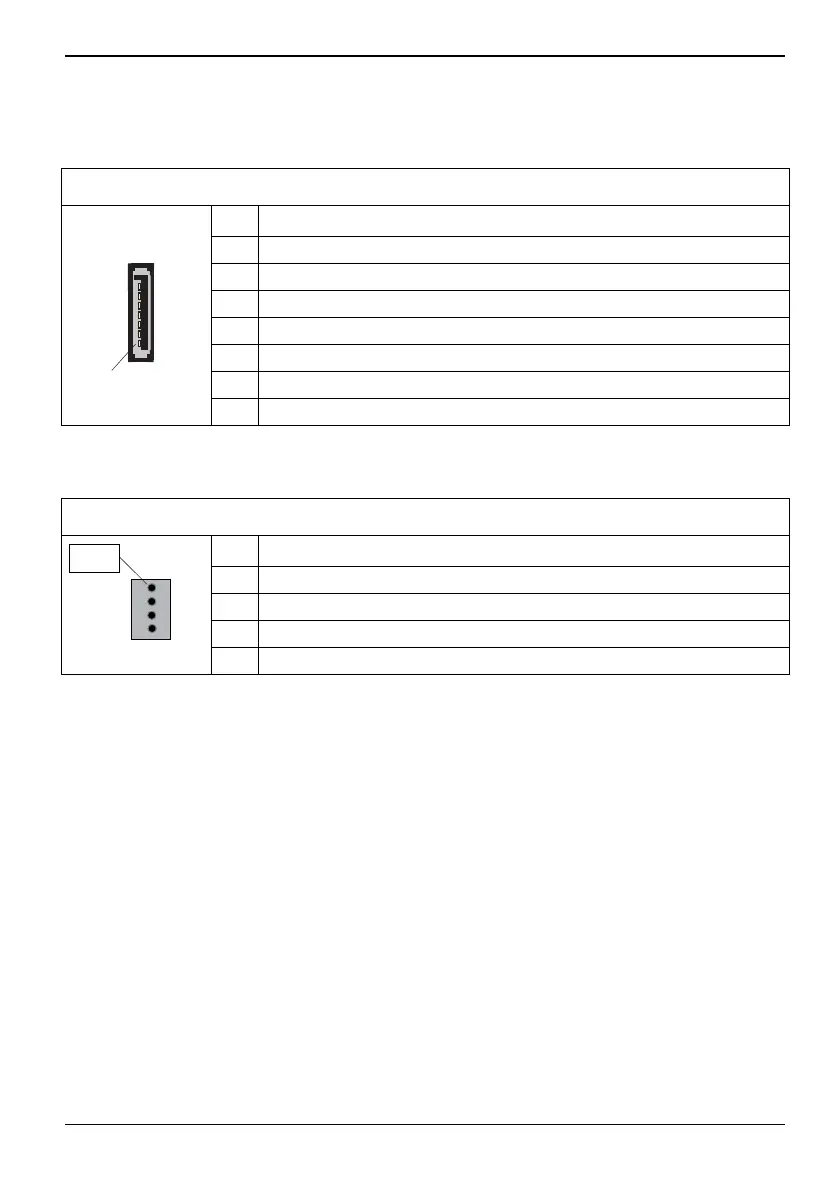

Ports for memory devices
Serial ATA port (internal, white)
PIN Signal
1 GND
1
2 Transmit data negative
3 Receive data negative
4 GND
5 Transmit data positive
6 GND
7 Receive data positive
System monitoring and management connectors
SCSI LED connector (internal)
PIN Signal
1 Not connected
2 SCSI-ON LED (low active)
3 SCSI-ON LED (low active)
Pin 1
4 Not connected
