28 - English Mainboard D3598
a
b
b

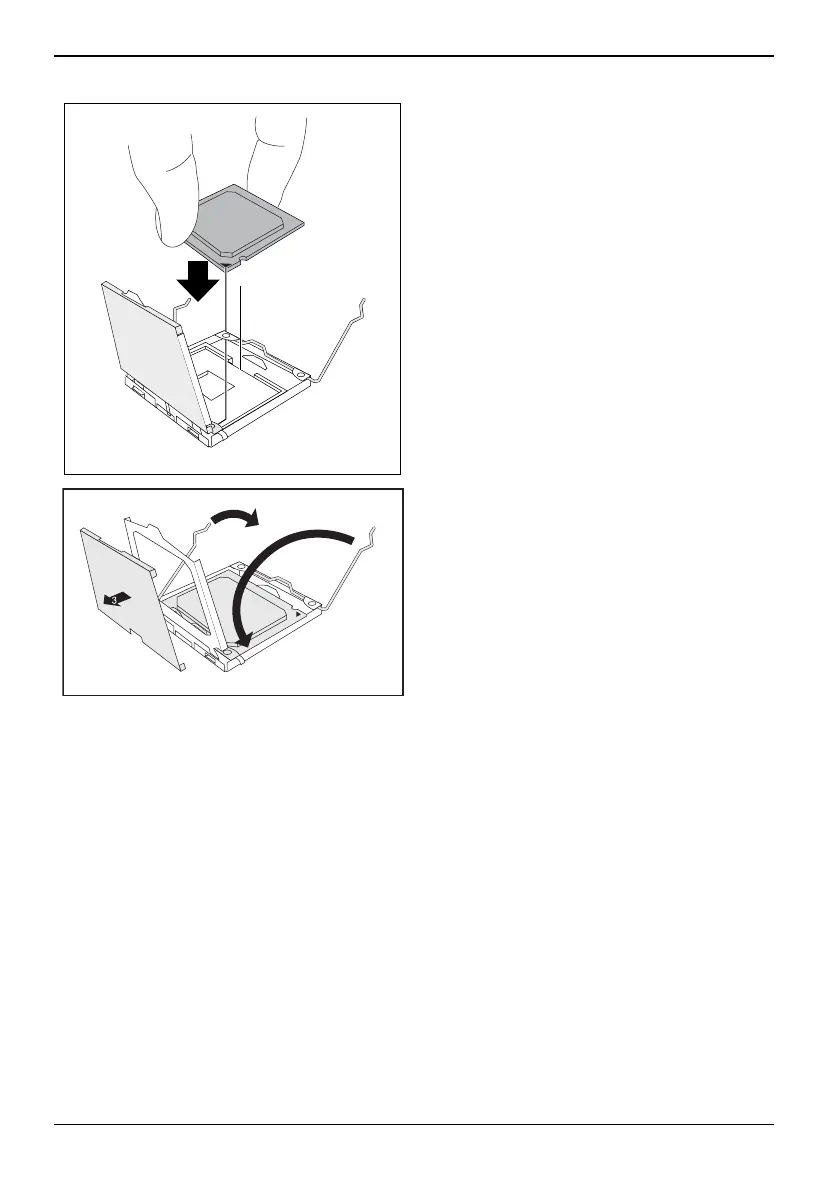

Hold the new processor between your thumb
and index finger and insert it into the socket (b)
so that the marking of the processor is aligned
with the marking on the socket (a).
2
1
► Fold down the frame (1).
► Press the levers downward (2) until they
are hooked in again.
► Remove the protective cap (3) and keep
it.
62 Fujitsu
