Fujitsu fi-5220C User Manual

6.1RemovingJammedDocuments(2)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

6.1RemovingJammedDocuments(2)


1
2
3

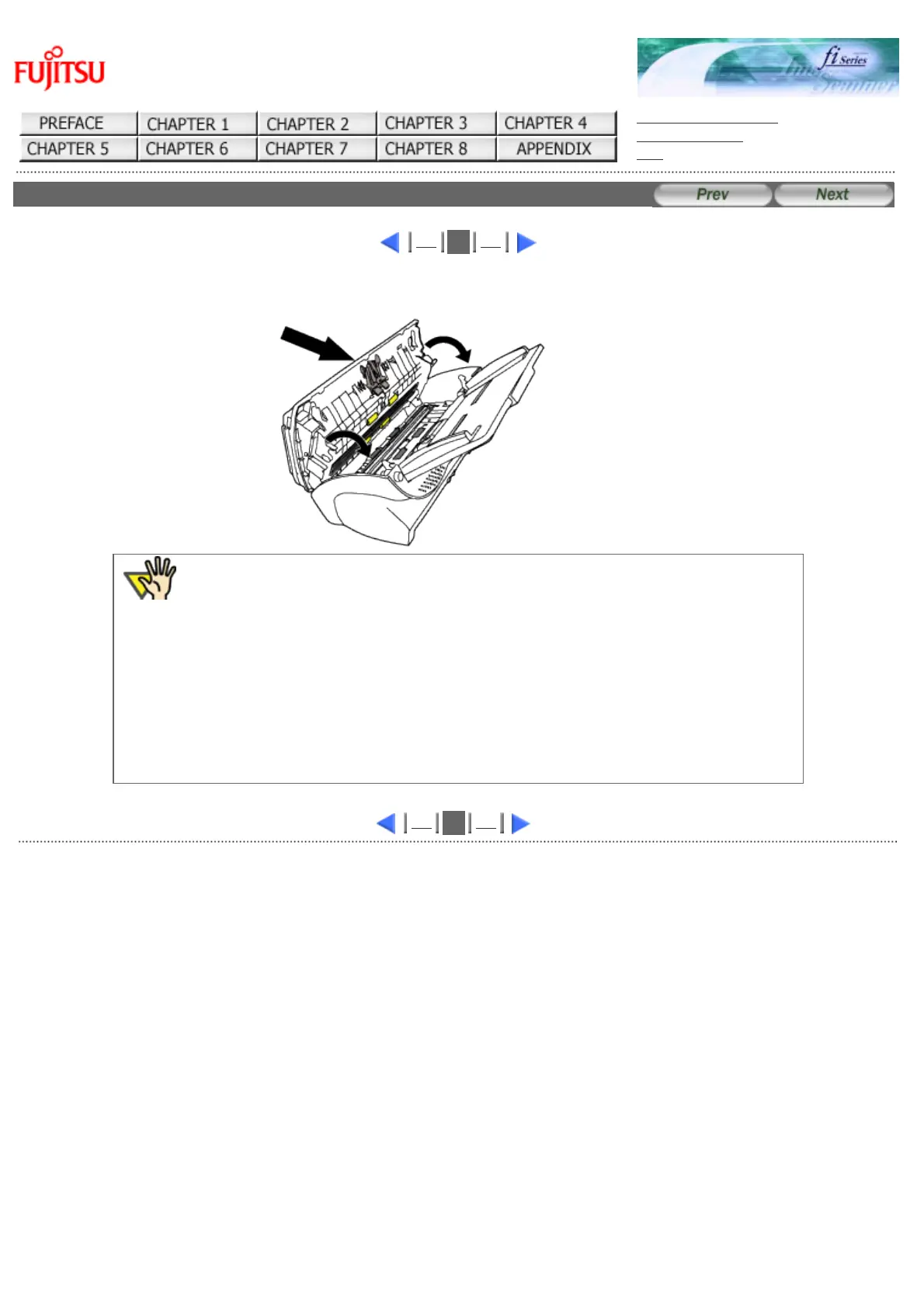

4. Press down on the center of the ADF to return it to its original position and lock the ADF button.
Press center of ADF
ATTENTION
● Make sure that the ADF is completely closed. When it is not completely closed,
document jams or feeding errors may occur.
● When the scanning is completed or canceled, the documents might remain inside
the ADF even though any error message is not displayed.
Follow the procedure below to remove the documetns remaining in the ADF.
1. Remove all documents from the ADF paper chute.
2. Open the ADF by pushing down the ADF button.
3. Remove the remaining documents.
4. Push in the center of the ADF to close it until the ADF button is locked.

1
2
3

AllRightsReservedCopyright2006©PFULIMITED
file://///Hd-htgle21/Manual/fi-5120C5220C-lynx2/OG/R03/contents/EN/06/c060102.htm2006/08/2916:01:27

Fujitsu fi-5220C Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	2 sec/page
Scanner type	Flatbed & ADF scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	SCSI, USB 2.0
Bundled software	-FJ TWAIN driver. -Scandall. -Adobe Acrobat. -ISIS Driver. -QuickScan (demo). -Soft IPC (demo). -VRS 4.1 Basic.
Dimensions (WxDxH)	302 x 569 x 229 mm
Power requirements	100-240 VAC
Power consumption (standby)	6 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Weight	8400 g
