1.2NamesandFunctionsofParts(4)


1 2 3
4
RemovableParts

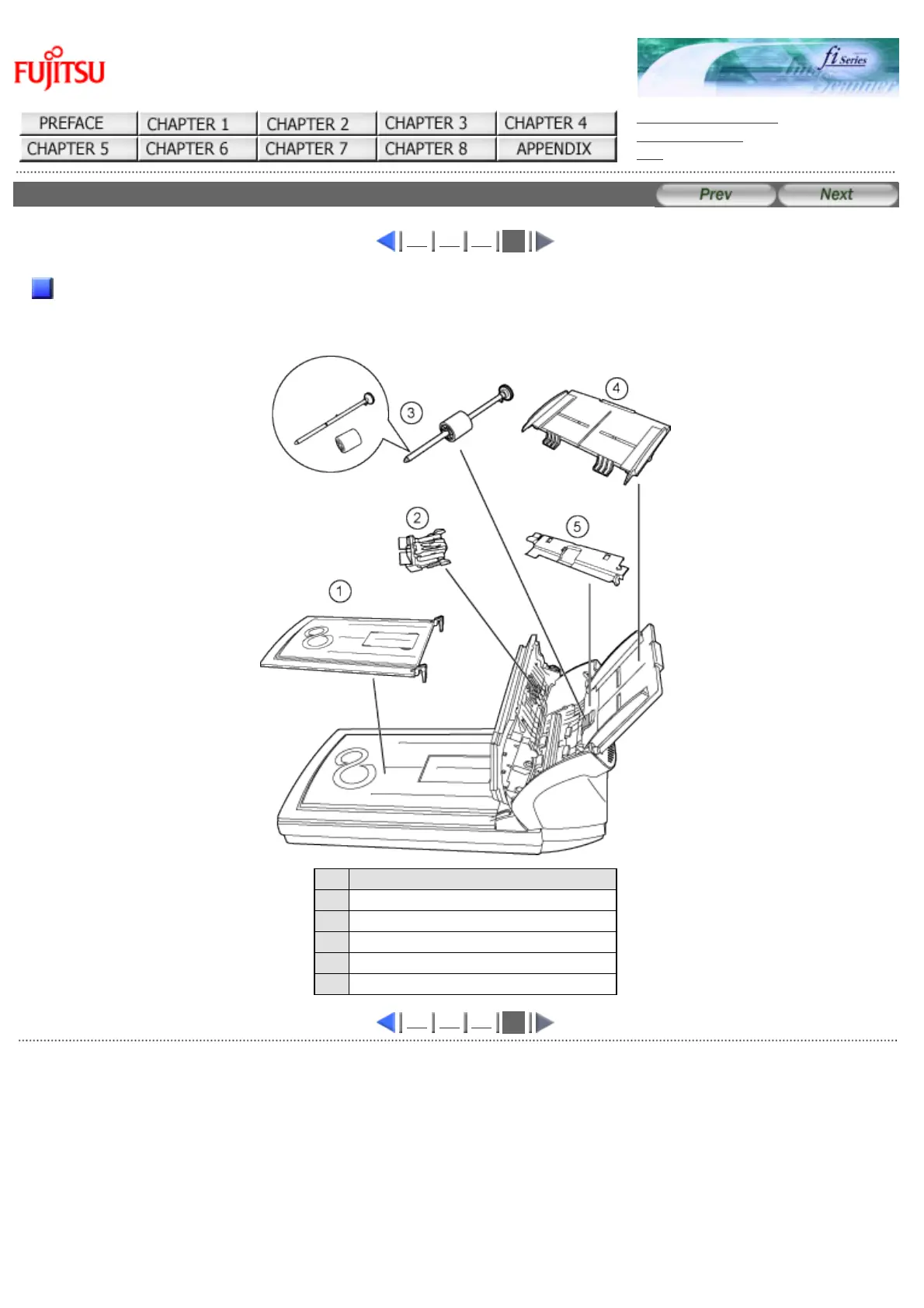

Parts that can be removed from the scanner are displayed below.
No. Name
1
Document cover (fi-5220C only)
2
Pad ASSY
3
Pick roller (can be removed)
4
ADF paper shute
5
Sheet guide
1 2 3
4
