1.2NamesandFunctionsofParts(1)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

1.2NamesandFunctionsofParts(1)

1
2 3 4

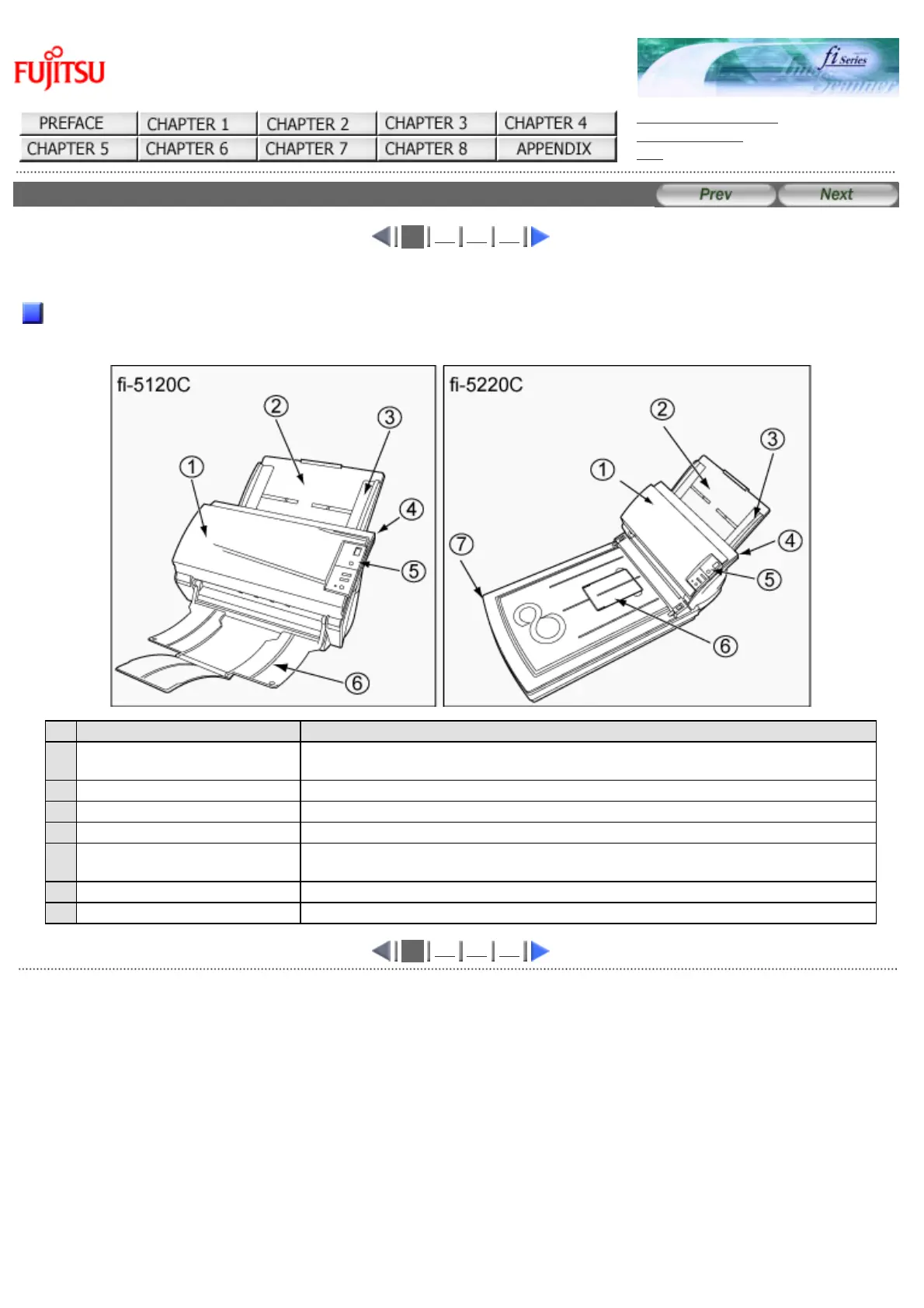

This section describes the scanner parts and their functions.
Front
No. Name Function
1
ADF
(Automatic Document Feeder)
It transports the document to the reading position automatically.
2
ADF paper chute Holds in place the document pages / sheets that are fed into the ADF.
3
Side Guide It is adjusted to the width of the paper in order not to scan skewed pages.
4
ADF button Puch this button to open the ADF.
5
Operator panel
This panel consists of a Function No. display, four operating push buttons
and a LED.
6
Stacker Scanned documents are ejected from the ADF onto this tray.
7
Flatbed For scanning documents not the standard sizes
1
2 3 4
