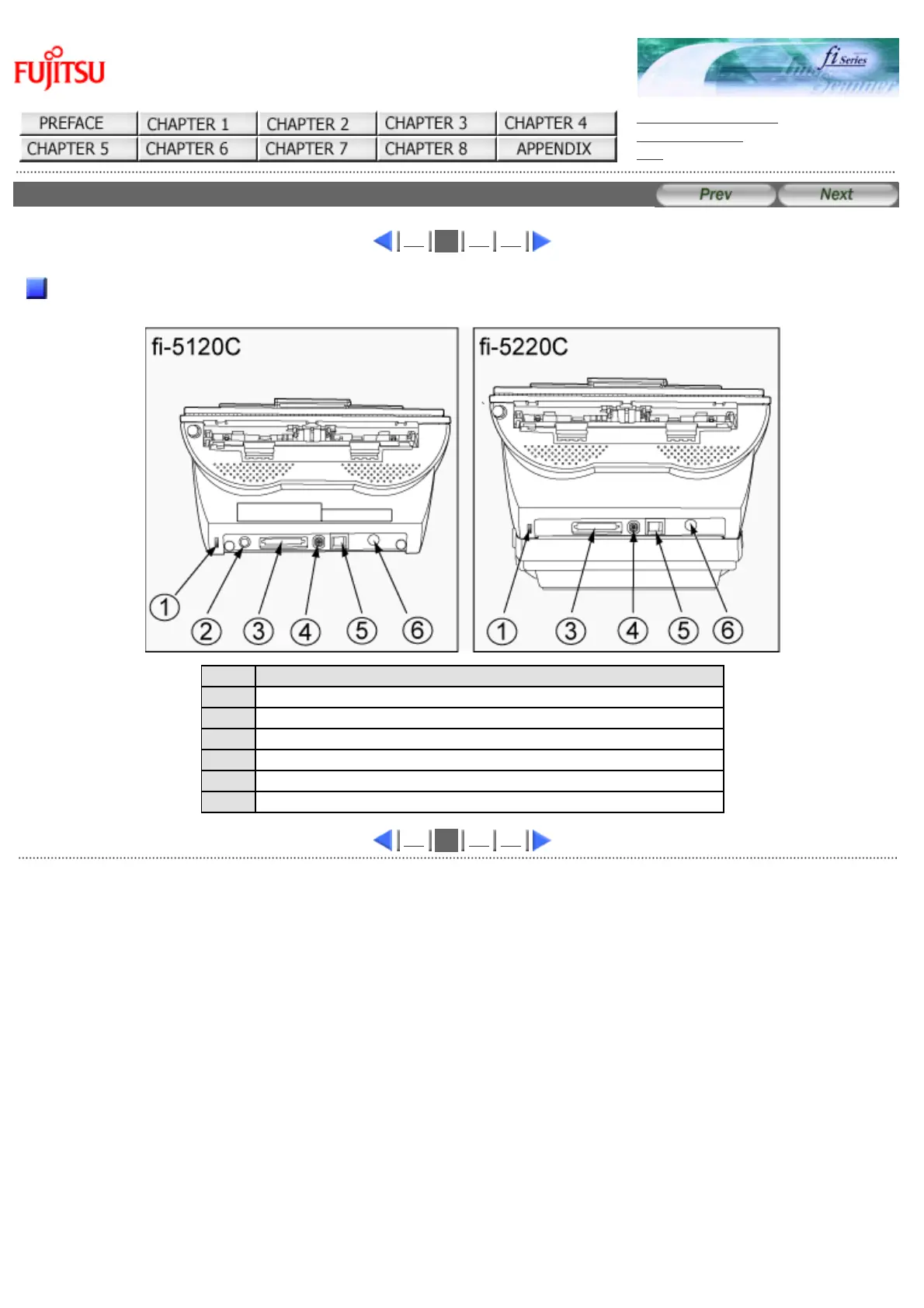

1.2NamesandFunctionsofParts(2)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

1.2NamesandFunctionsofParts(2)


1
2
3 4
Rear
No. Name
1
Security Slot
2
Imprinter connector (fi-5120C only)
3
SCSI Interface connector
4
SCSI ID switch
5
USB Interface connector
6
DC Inlet
