Fujitsu fi-5220C

3.9DetectingMultifeeds(1)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

3.9DetectingMultifeeds(1)


1
2 3 4 5 6
"Multi feed" is a feeding error that occurs when two or more sheets in the ADF paper chute are fed simultaneously into the
scanner.
You can set the scanner to detect multi feed, stop scanner operation, and display an error message.
To set the scanner to detect multi feed, change the settings in the [TWAIN Driver] dialogbox.

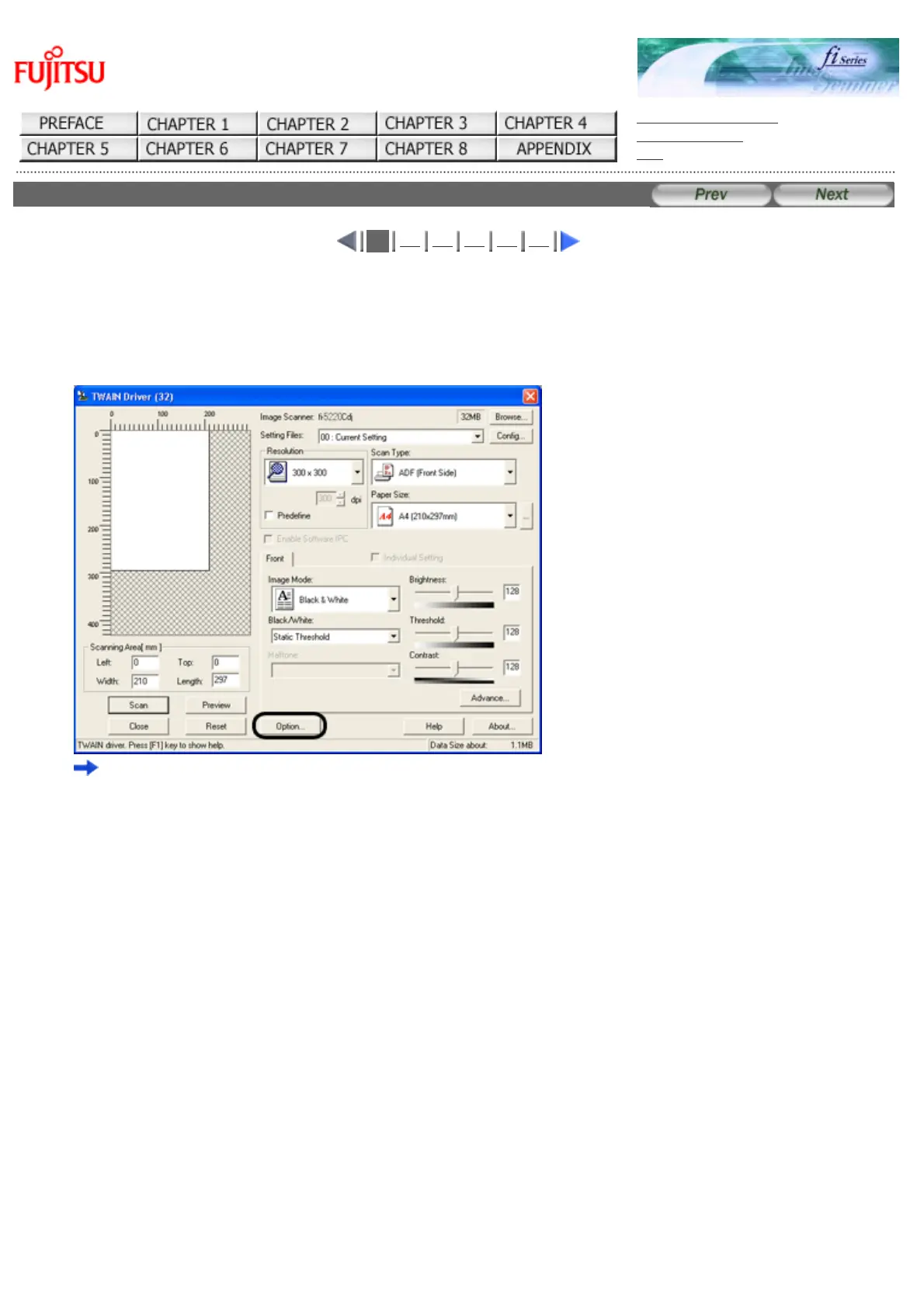

1. Click the [Option...] button in the [TWAIN Driver] dialogbox.
The [Option] dialog box appears.
2. Click the [Job/Cache] tab.
3. Select the detection conditions from "Multi Feed Detection" under "ADF Option".
