4.3CleaningtheADF(2)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

4.3CleaningtheADF(2)


1
2
3 4

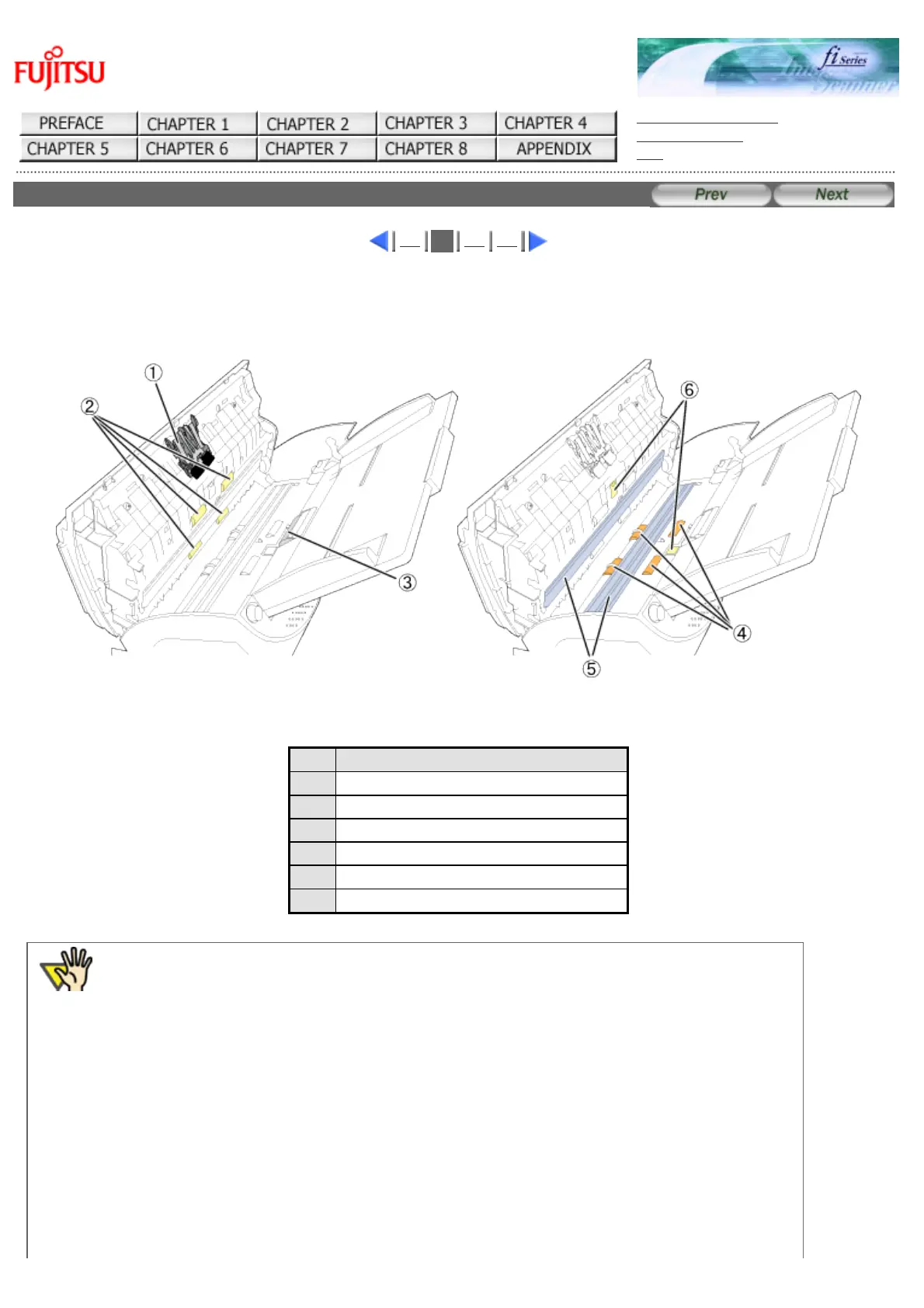

2. Clean the following locations with a soft, dry cloth moistened with Cleaner F1.
No. Item
1
Pad ASSY (x 1)
2
Feed rollers (x4)
3
Pick roller (x1)
4
Plastic rollers (x 4)
5
Glass (x 2)
6
Ultrasonic sensors (x 2)
ATTENTION
To avoid damaging the document sensors, take care that the cloth does not get hooked into them
when cleaning the inside of the ADF.
