4.3 Replacing the Pick Roller
fi-5530C2 Image Scanner Operator’s Guide 103
REPLACING CONSUMABLES
4

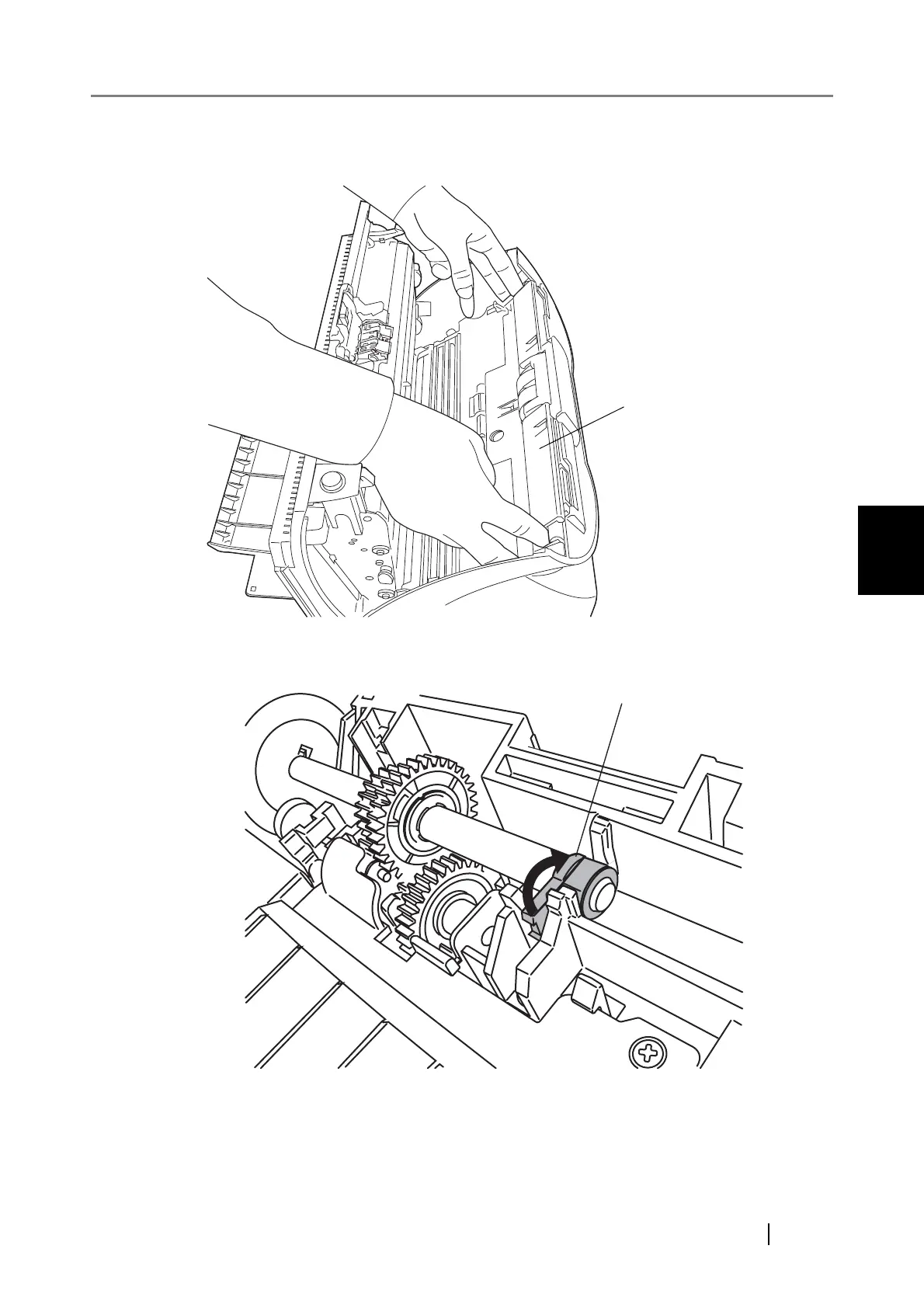

4. Remove the Pick roller from the scanner.
1) Pinch the knobs on the sheet guide and lift up the sheet guide to remove it.
2) Rotate the Pick roller bushing in the direction of the arrow.
Sheet guide
Pick roller bushing
