fi-5900C & fi-5950 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
10
REPLACING THE BRAKE ROLLER (CONT.)

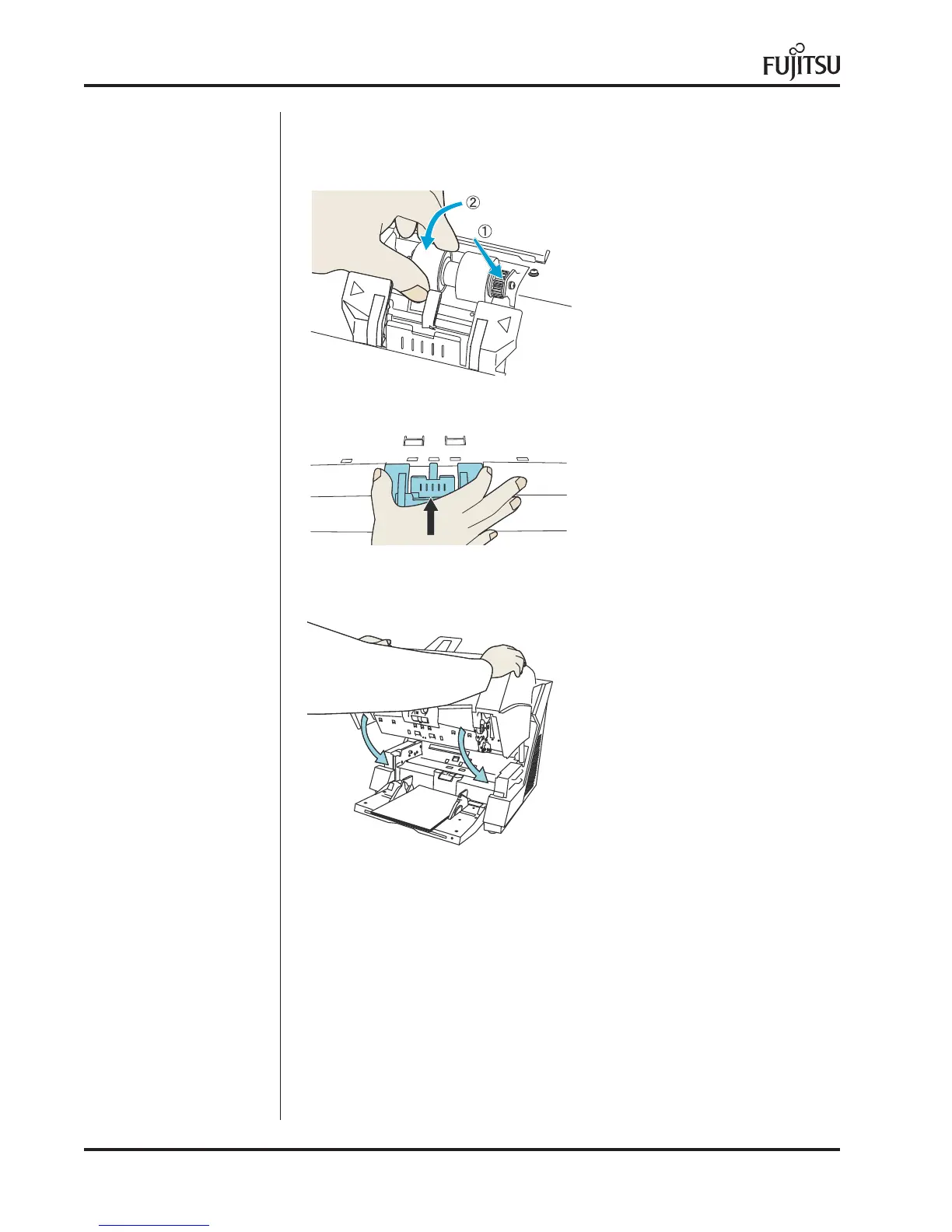

• Install the new Brake Roller
by inserting the right end of
the shaft into the mounting
hole, then place the left end
into the mounting bracket.
• Close the Pad Cover.
• Close the ADF Cover.
• Reset the Brake Roller
Counter in the Software
Operation Panel.
