LifeBook T Series Tablet PC - Section 2

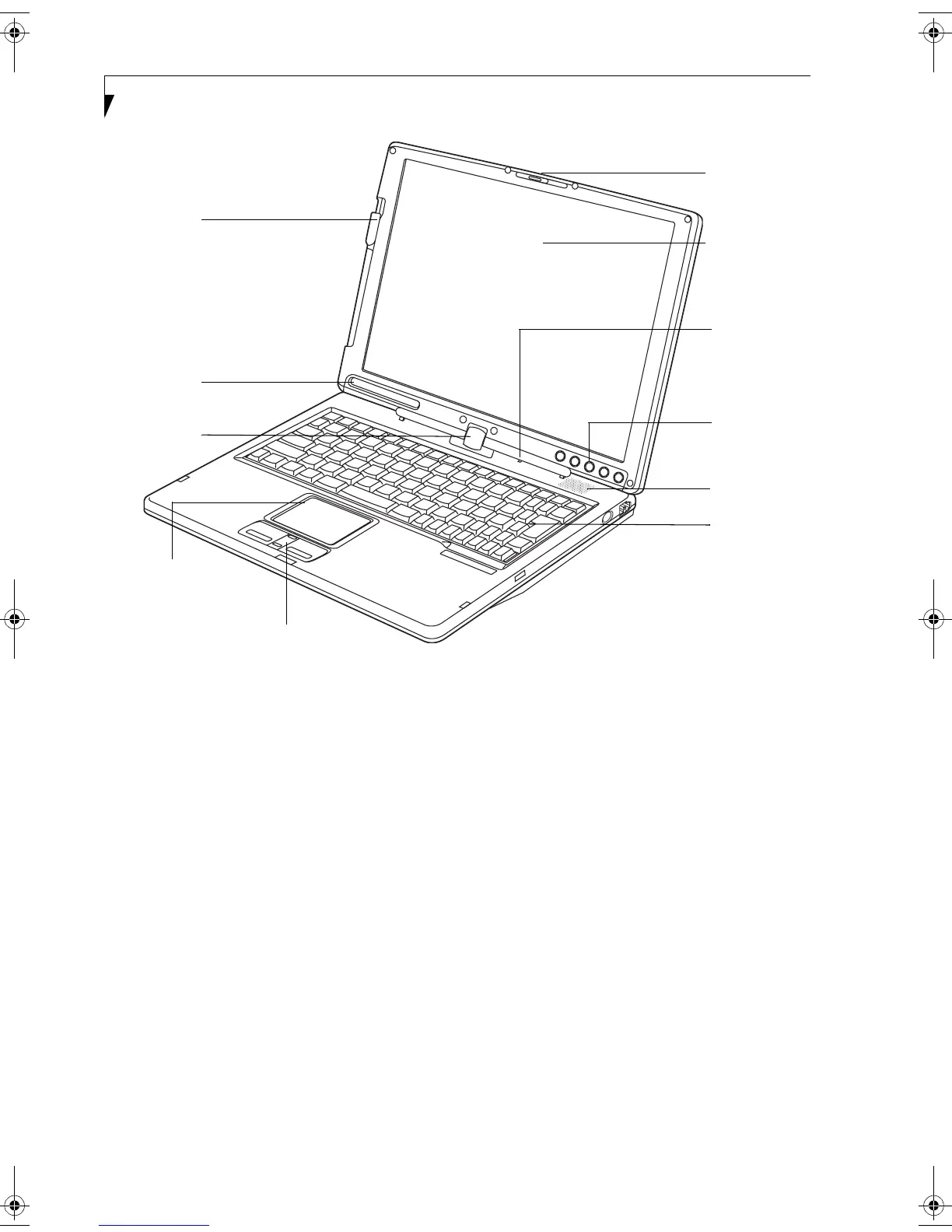

Figure 2-4. LifeBook T Series Tablet PC with display open
TOP AND FRONT COMPONENTS
The following is a brief description of the top and front
features of the LifeBook T Series Tablet PC. (Figure 2-4)
Pen/Pen Holder
The pen is used as the interface with the active digitizer
display.
Closed Cover Switch
The closed cover switch turns off the LCD back
lighting when the display panel is closed.
Display Panel Latch
The display panel latch locks and releases the display
panel.
Status Indicator Panel
The Status Indicator Panel displays symbols that corre-
spond to specific components of your LifeBook T Series
Tablet PC. See “Status Indicator Panel” on page 15.
LifeBook Security/Tablet PC Buttons
The LifeBook T Series Tablet PC Security/Tablet PC
Buttons provide hardware security and application
launch capabilities. See “LifeBook Security/ Tablet PC
Buttons” on page 21.
Touchpad Pointing Device
The Touchpad pointing device consists of two mouse-
like buttons and one scroll button. See “Touchpad
Pointing Device” on page 25.
Keyboard
A full-function keyboard with dedicated Windows keys.
See “Keyboard” on page 19.
Display Panel
The display panel is a color LCD panel with back
lighting for the display of text and graphics and active
digitizer functionality.
Rotation Hinge
The rotation hinge allows you to transform your Tablet
PC from a notebook configuration into a tablet configu-
ration. For more information, see See “Using the System
as a Tablet” on page 17.
Display
Status
Keyboard
LifeBook
Touchpad
Scroll Button
Indicator
Panel
Panel
Display
Panel
Latch
Rotation
Hinge
Closed
Cover
Switch
Security/
Pointing
Device
Speaker
Pen/
Pen Holder
Tablet PC
Buttons
