LifeBook T Series Tablet PC - Section Four

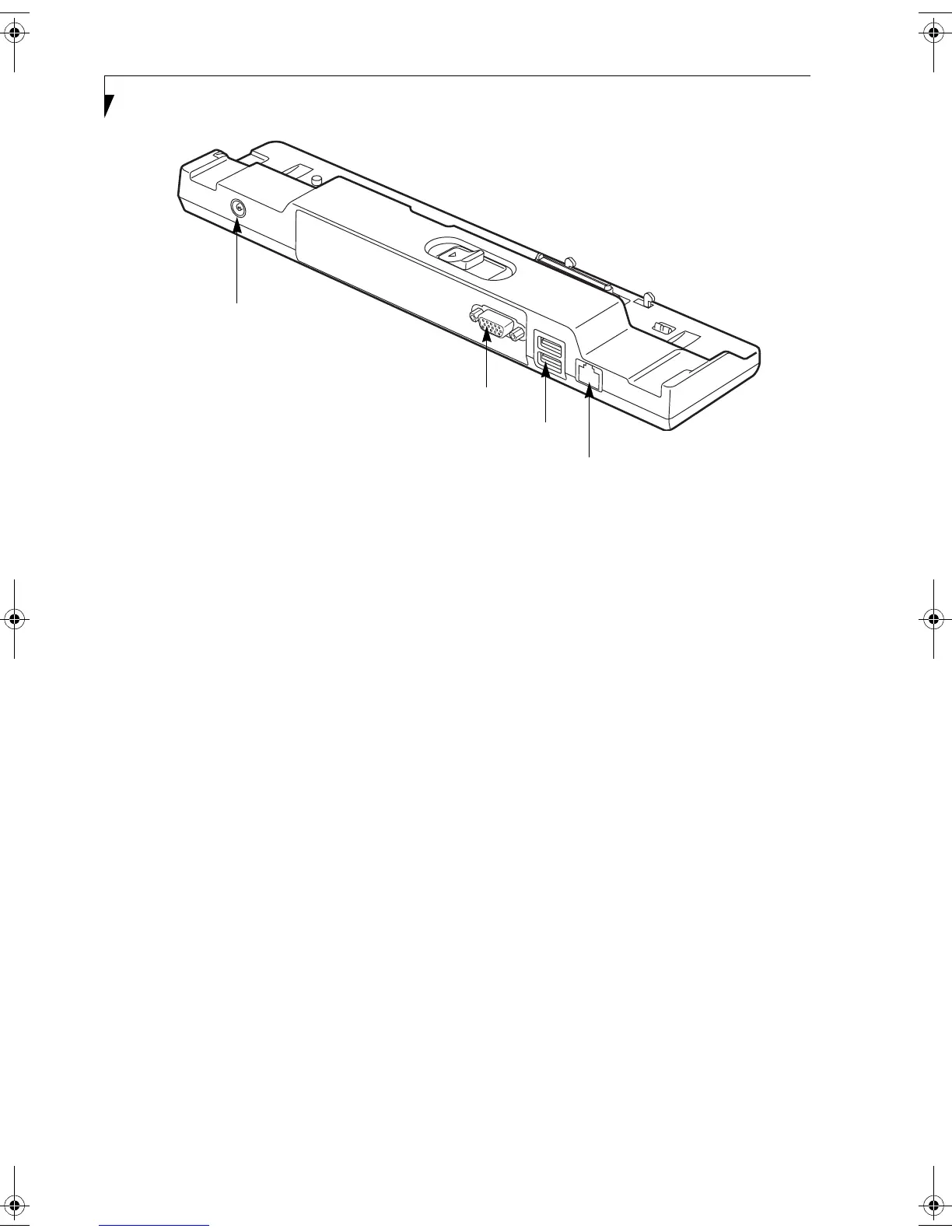

Figure 4-7. Port Replicator rear panel
Port Replicator
An optional Port Replicator is available from Fujitsu to
support your LifeBook T Series Tablet PC. The Port
Replicator extends the functionality of your Tablet PC
by providing ports to connect USB devices, an external
monitor, or a LAN device. The Port Replicator connects
to the bottom of your Tablet PC. See “Device Ports” on
page 48.
REAR PANEL COMPONENTS
Following is a brief description of the optional Port
Replicator’s rear panel components.
External Monitor Port
The external monitor port allows you to connect an
external VGA or SVGA monitor. Note that if a Port
Replicator is attached, you must use the external
monitor port on the Port Replicator. (Figure 4-7)
LAN (RJ-45) Jack
The LAN jack allows you to connect a LAN to the Port
Replicator. Note that when the system is attached to the
Port Replicator, the LAN Jack on the Port Replicator
should be used, not the one on the system.
DC Power Jack
The DC power jack allows you to plug in the AC adapter
to power your Tablet PC and charge the internal
Lithium ion battery.
USB 2.0 Ports
The two USB 2.0 ports allow you to connect USB
devices such as game pads, pointing devices, and
keyboards. USB 2.0 is downward-compatible with USB
1.1 devices, so older USB devices will work with these
ports. USB 2.0 is a much faster design, running 40 times
faster than USB 1.1.
External Monitor Port
LAN (RJ-45) Jack
DC Power Jack
USB Ports
