3. Set the SCSI terminator switch on the rear of the image scanner to ON or OFF.
NOTICE
The SCSI terminator switch is set to ON before shipment from the factory. When the image scanner is
located in the middle of a SCSI daisy chain, change the terminator setting to OFF.
When the image scanner is located at the end the daisy chain, set the terminator to ON.
■ Mounting the Stacker

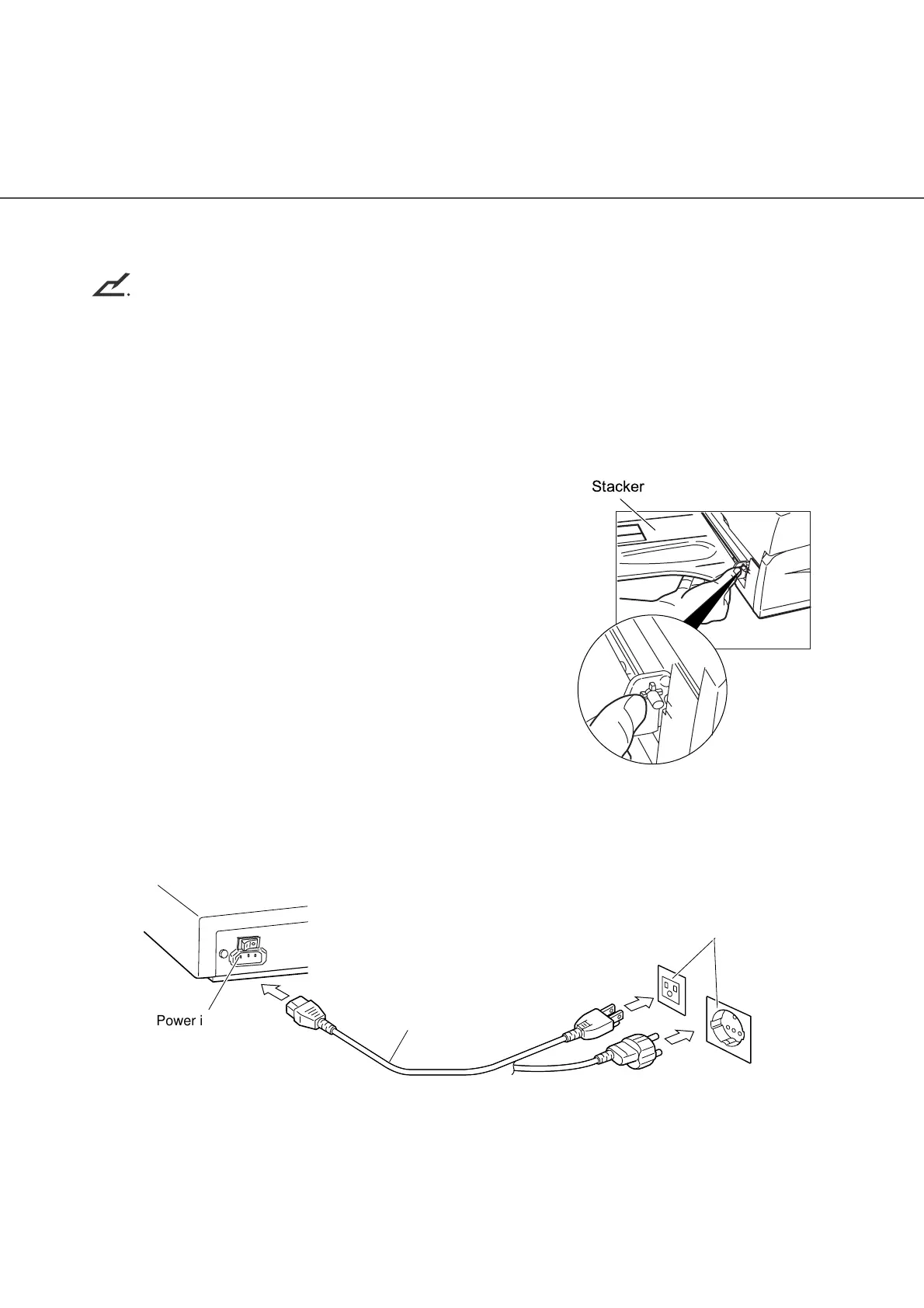

1. Press in the bottom of the pins on both sides of the stacker with
your fingertips, and insert the stacker pins until they slot into the
holes on the image scanner.
■ Connecting the power cable
1. Connect the power cable to the power inlet of the device and a power outlet.
Stacker
Power inlet
Power cable
Power outlet
for Europe
for North America
