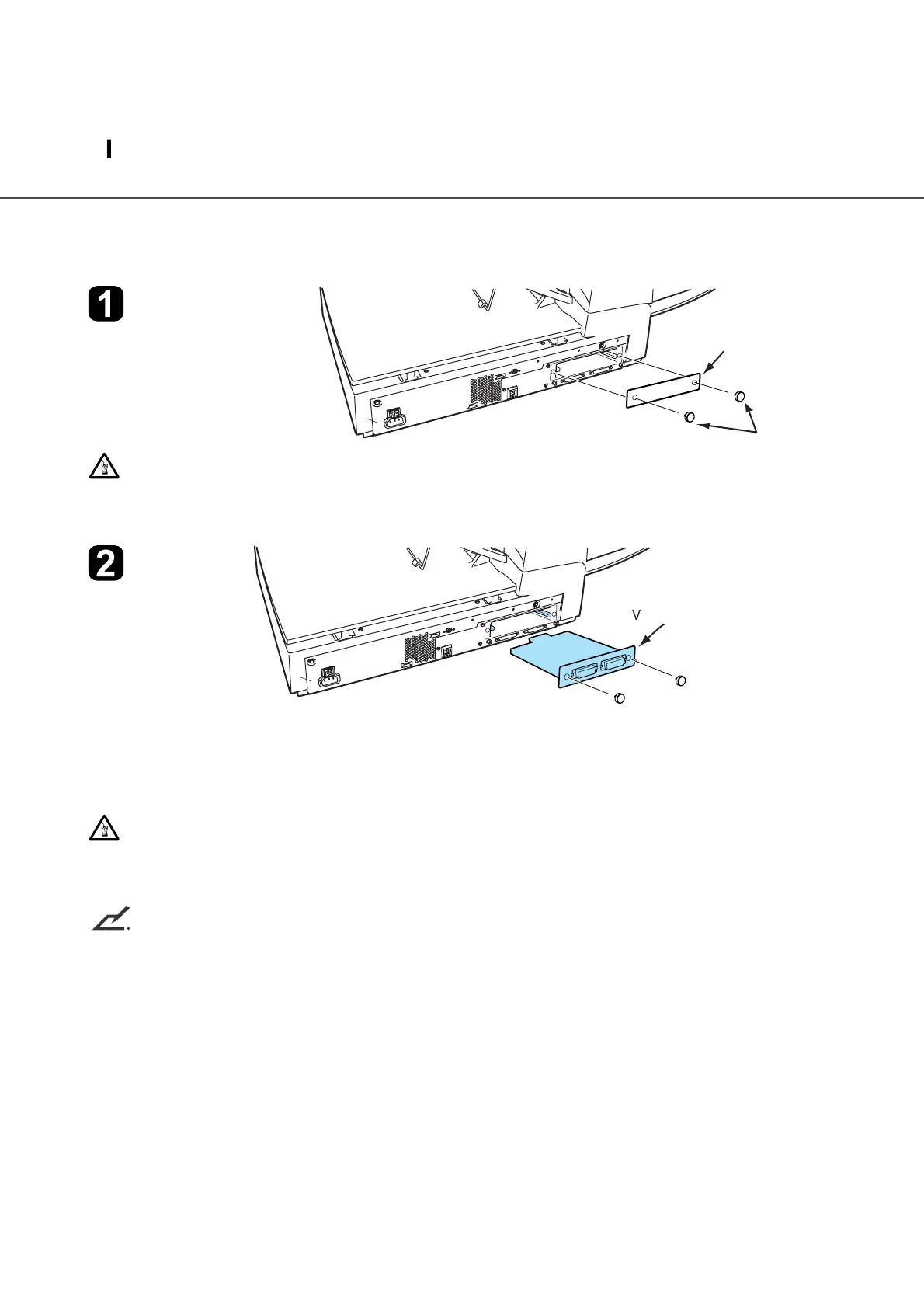

■ How to Install the VIDEO INTERFACE BOARD

Loosen the two

screws to

remove the

plate.

CAUTION

Turn Off the power before removing the Third Party slot plate.

Insert the board

along the rails

of the third

party slot. Make

sure that the

connector is

connected

securely.

Secure the

board with two

screws.

CAUTION

Protective measures are required to prevent damage from static electricity.

NOTICE

When the scanner power is turned On again, the scanner automatically recognizes the video

interface board.

Plate

Screws



VIDEO INTERFACE BOARD
