3.4 Cable Connections
C156-E205-01EN 3-13
3.4 Cable Connections
3.4.1 Drive connectors
The optical disk drive (ODD) has connectors. Figure 3.9 shows the location of the
connectors.
"
AT interface connector (40-pin) and power supply connector (4-pin)

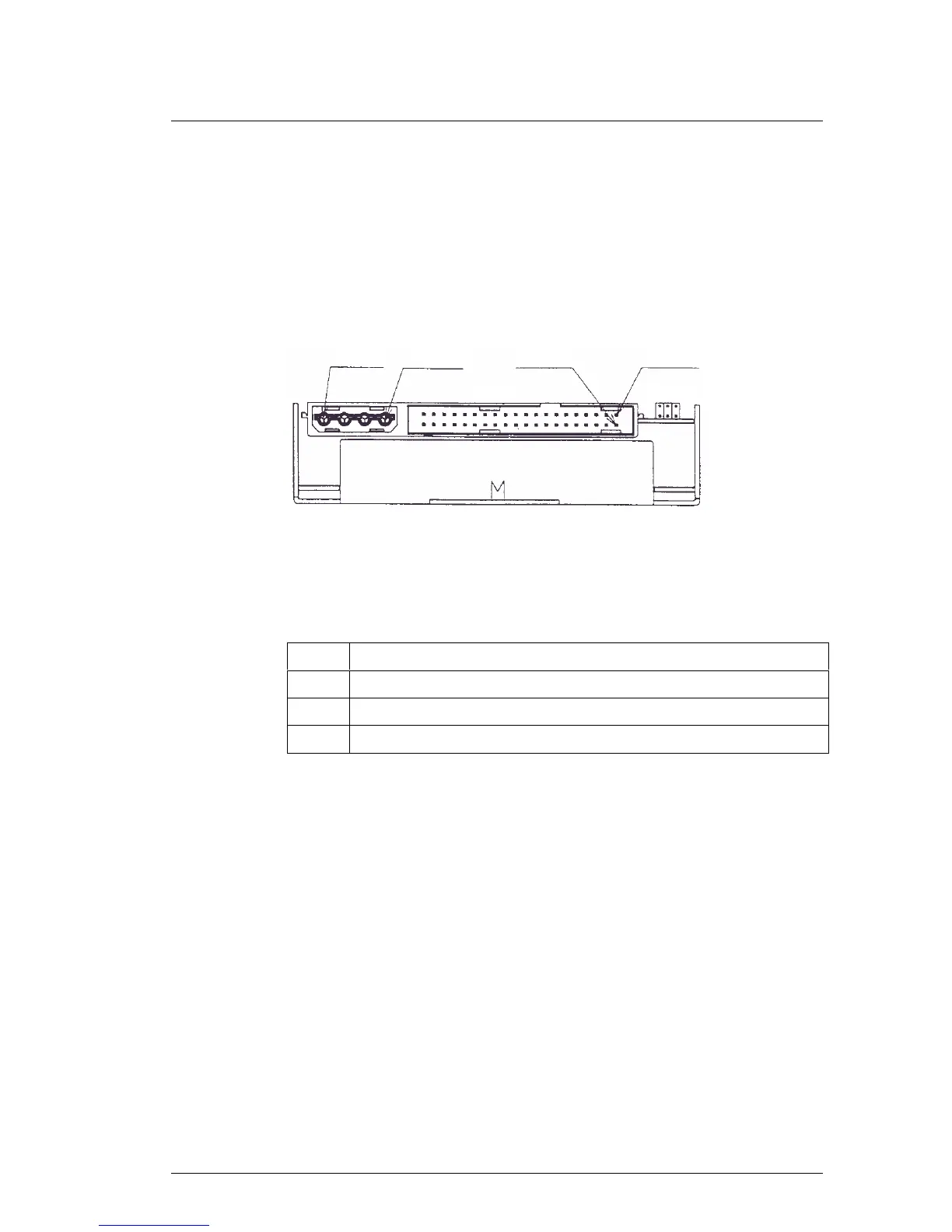

Figure 3.9 Connector and terminal locations
Power supply connector
1 +12 VDC or not connected
2 +12 VDC RETURN (GND) or not connected
3 +5 VDC RETURN (GND)
4 +5 VDC
4 pin1 pin
2
pin
C
N1
1 pin
C
NH5
