3.5 Jumper Settings
C156-E205-01EN 3-15
3.5 Jumper Settings
3.5.1 Jumper settings at factory shipping

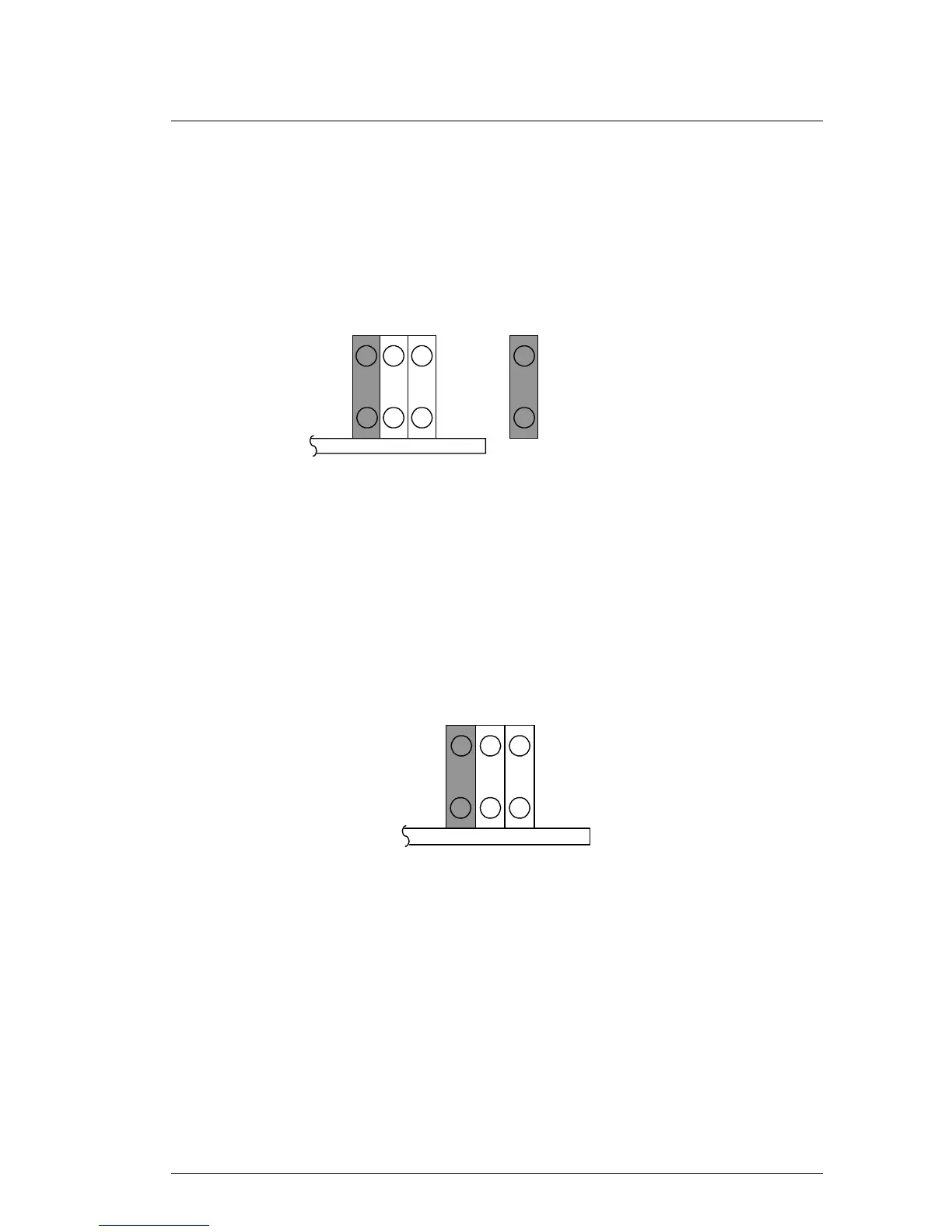

Figure 3.11 shows jumper settings at factory shipping.
CNH5
31
:
Short
5-6 short-circuited: Sets the master device.
42
5
6
Figure 3.11 Jumper settings at factory shipping
3.5.2 Mode setting
(1) Setting master device mode
Figure 3.12 shows the setting for recognizing the master device (device 0).
C
NH5
3
1
4
2
5
6
Figure 3.12 Master device setting
