BX920 S2 Options Guide 35
7 Mezzanine cards
One or two mezzanine cards can be installed in a BX920 S2 server blade.
Additional Fibre Channel, Ethernet and/or Infiniband I/O channels can be set up
using these cards.
All mezzanine cards have the same form factor.

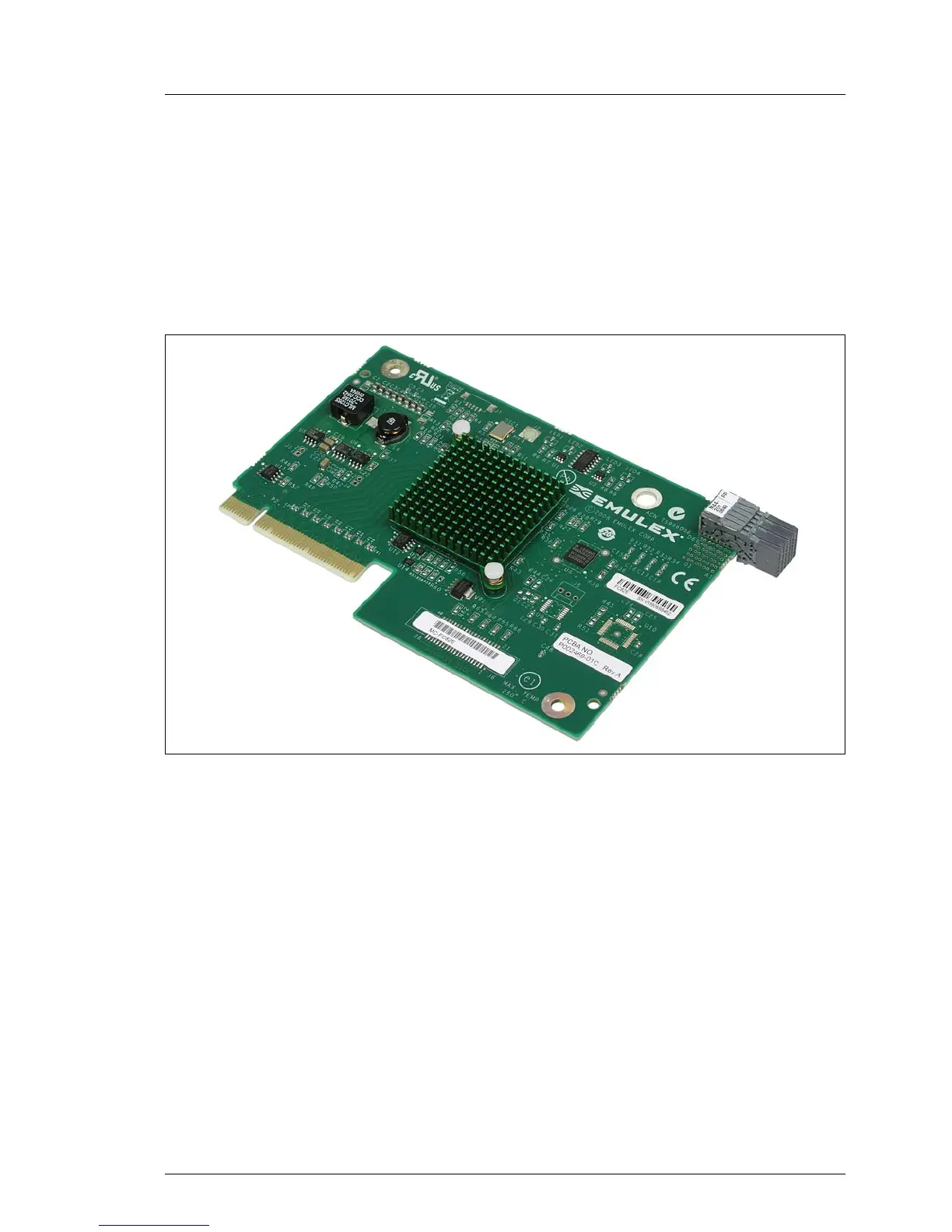

Figure 16: 8 Gbit/s fibre-channel mezzanine card with 2 ports
The mezzanine cards are fastened on a special carrier and then connected
together with the carrier to the system board.
