BX920 S2 Options Guide 37
Mezzanine cards
7.1 Population rules for mezzanine cards

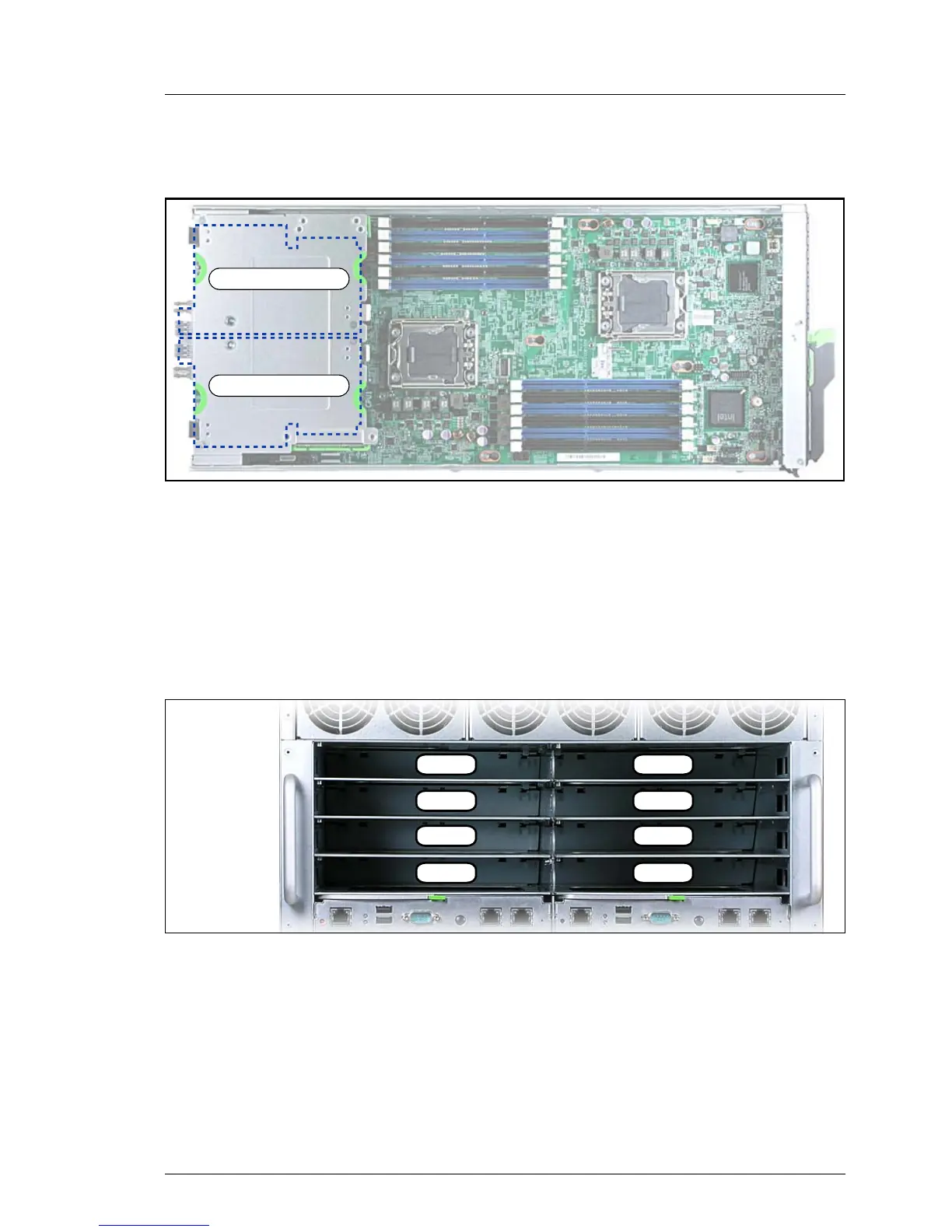

Figure 18: Slot numbering for mezzanine cards
The slots of the mezzanine cards in the server blade are connected to certain
connection blade slots on the back of the system unit. You therefore need to
observe how the connection blade slots are populated on the back of the
system unit when installing mezzanine cards.
Population rules for mezzanine cards in the BX900 S1 system unit
Figure 19: Slot numbering for connection blades
The figure below shows the connections of the connection blade slots to the
slots for mezzanine cards.
Mezzanine card 1
Mezzanine card 2
CB1
CB3
CB5
CB7
CB2
CB4
CB6
CB8
Fabric 1
Fabric 2
Fabric 3
Fabric 4
