Fujitsu Primergy RX100 S3 Service Supplement

20 Service Supplement RX100 S3
Replacing the power supply unit Replacement routines
© cognitas. Gesellschft für Technik-Dokumentation mbH 2005 Pfad: L:\RX100_S3\RX100S3_ss\RX100S3_ss_e\RX100S3_ss_e.k04

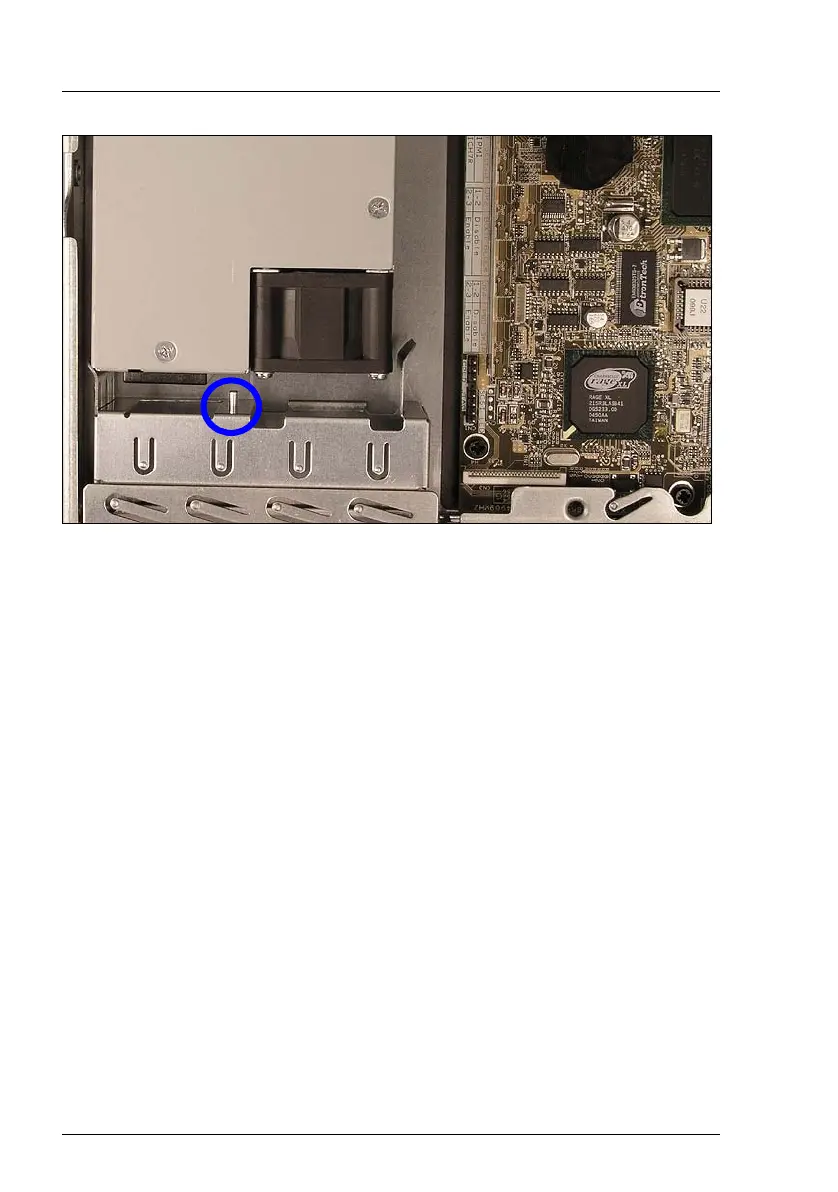

Figure 4: Making the pin free
Ê Push the power supply unit in direction of the hard disks until the pin
becomes free (see circle).
Ê Push the new power supply unit into the bay until the pin is fully inserted.
Make sure that the cables are not damaged.
Ê Connect all power supply cables to the system board and the drives (see
cabling in the appendix).
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
