Fujitsu Primergy RX100 S3 - Replacing the SATA Backplane

22 Service Supplement RX100 S3
Replacing the SATA backplane Replacement routines
© cognitas. Gesellschft für Technik-Dokumentation mbH 2005 Pfad: L:\RX100_S3\RX100S3_ss\RX100S3_ss_e\RX100S3_ss_e.k04
4.5 Replacing the SATA backplane
You will find the SATA backplane only in the hot-plug variant.
Ê Open the server as described in the section “Preparation” on page 17.
Ê Remove all the hot-plug hard disk drives (for a description see the Operating
Manual).
V CAUTION!
Check if all hard disk drives are uniquely identified so that you can
reinsert them into their original bays.
Ê Remove all cables from the SATA backplane.

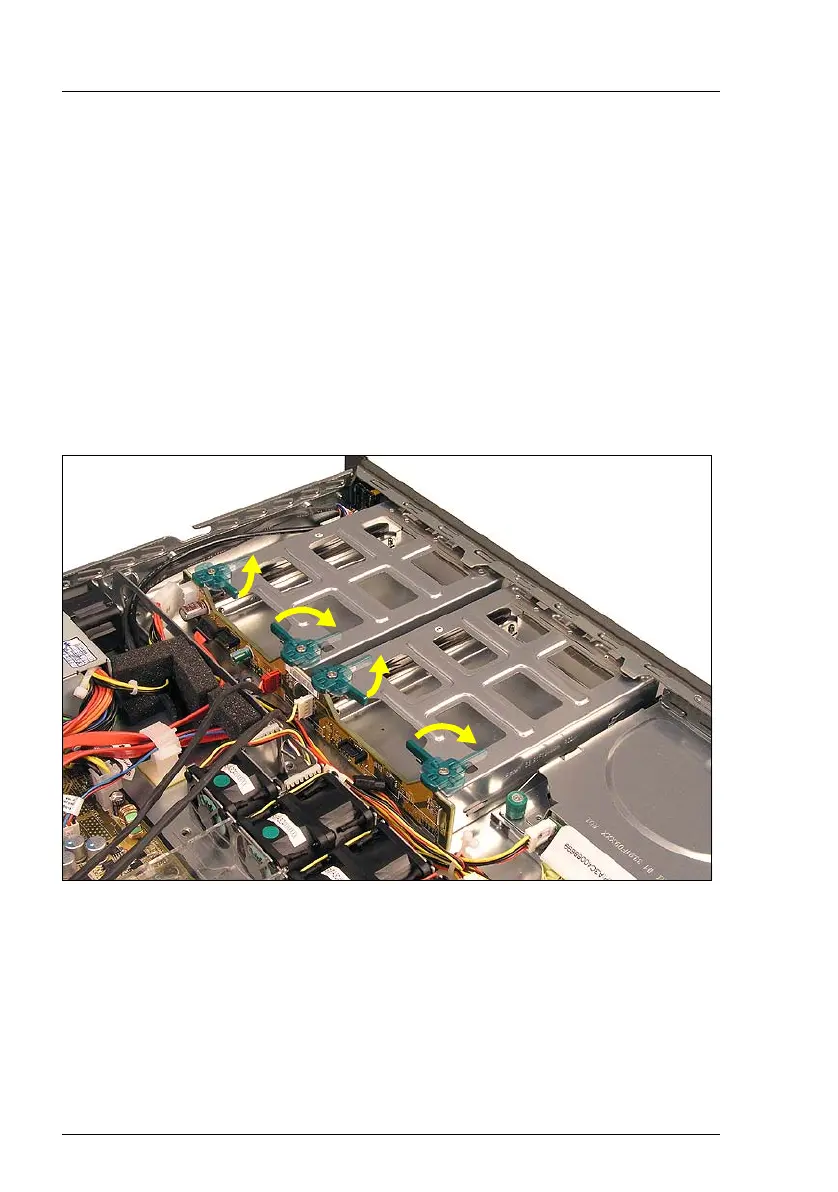

Figure 6: Unlocking the SATA backplane
Ê Unlock the SATA backplane by pushing the green levels in direction of the
arrows.
Ê Take out the SATA backplane.
