RX100 S3 Service Supplement 23
Replacement routines Replacing the riser card

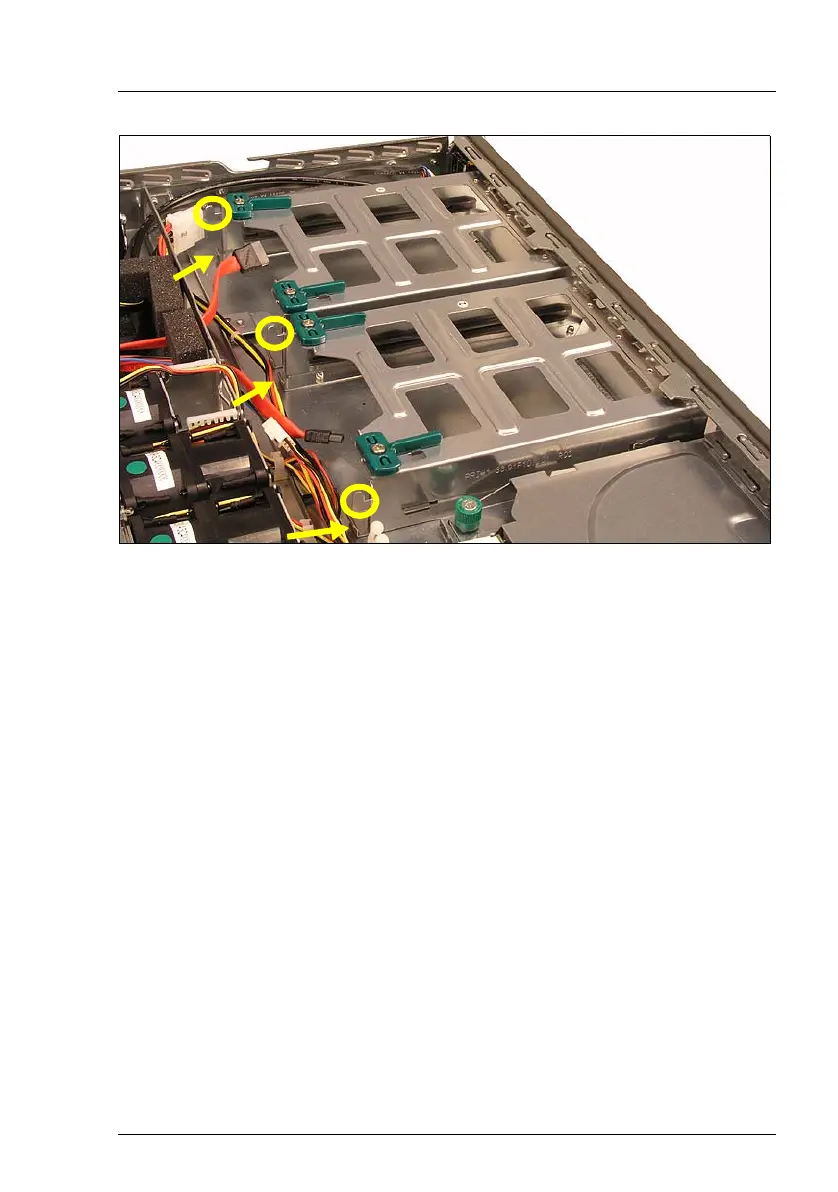

Figure 7: Positioning the SATA backplane
Ê Position the SATA backplane on the hooks (see circles). Make sure that the
SATA backplane fits in the guidances (see arrows).
Ê Fasten the SATA backplane by pushing the green levels in the former
position.
Ê Connect all cables to the SATA backplane (see cabling in the appendix).
Ê Reinstall all hot-plug hard disk drives (for a detailed description see the
Operating Manual).
Ê Close the server and connect all power plugs (for a detailed description see
the Options Guide).
4.6 Replacing the riser card
There are two different riser cards (see appendix). The spare part consists of
the riser card holder with mounted riser card.
Ê Open the server as described in the section “Preparation” on page 17.
