Fujitsu PRIMERGY RX100 S7 - Starting Up and Operating the PRIMERGY RX100 S7; Server Controls and Indicators Overview

RX100 S7 Operating Manual 61
6 Starting up and operation
V CAUTION!
Follow the safety instructions in chapter "Important information" on
page 33.
6.1 Control elements and indicators
6.1.1 Front of the server

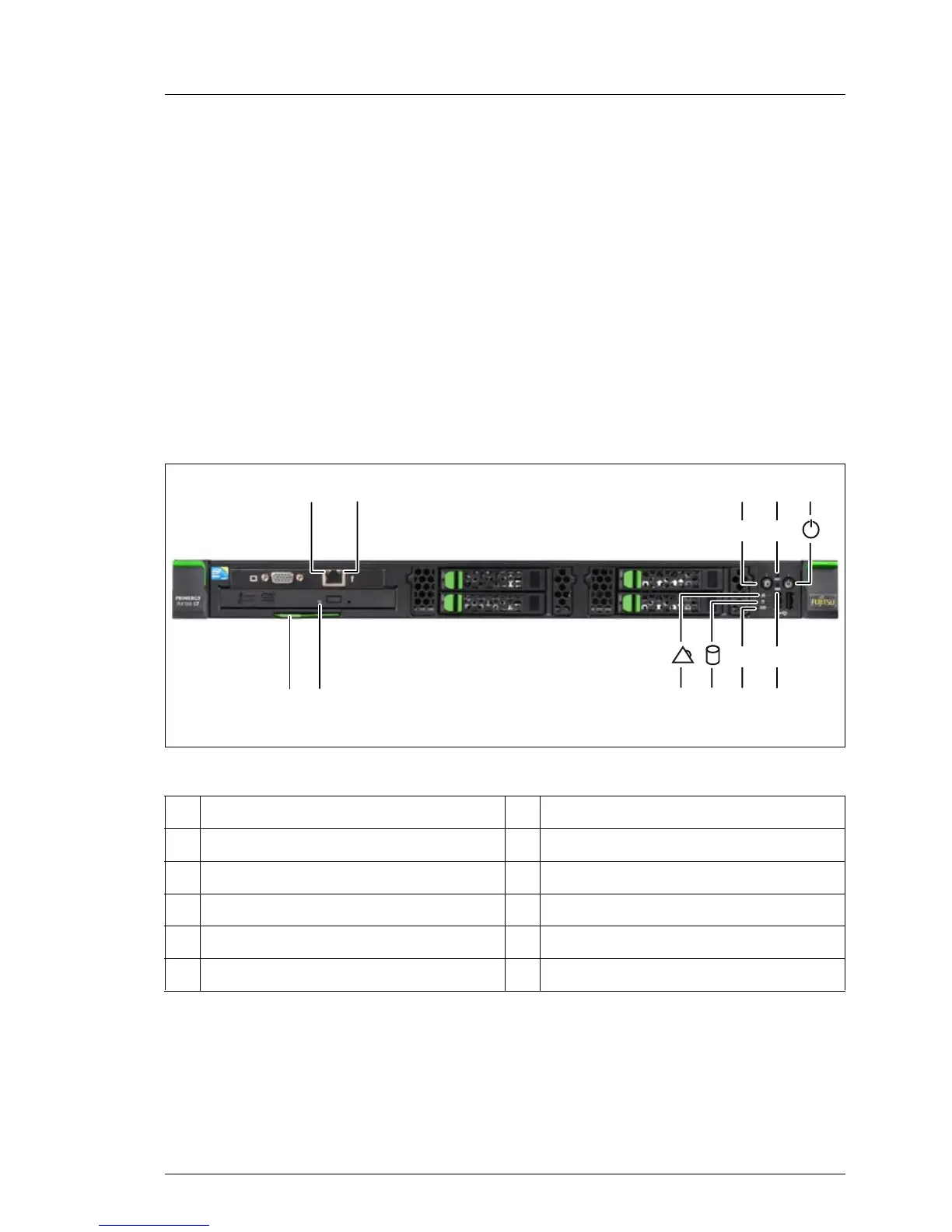

Figure 7: Controls and indicators on the front panel
1 LAN speed indicator 7 CSS indicator
2 LAN link/transfer indicator 8 Hard disk activity indicator
3 ID button / ID indicator 9 Global Error indicator
4 Reset button 10 Optical drive activity indicator
5 On/Off button / power-on indicator 11 ID card
6 NMI button
