68 Operating Manual RX100 S7
Starting up and operation
LAN indicators

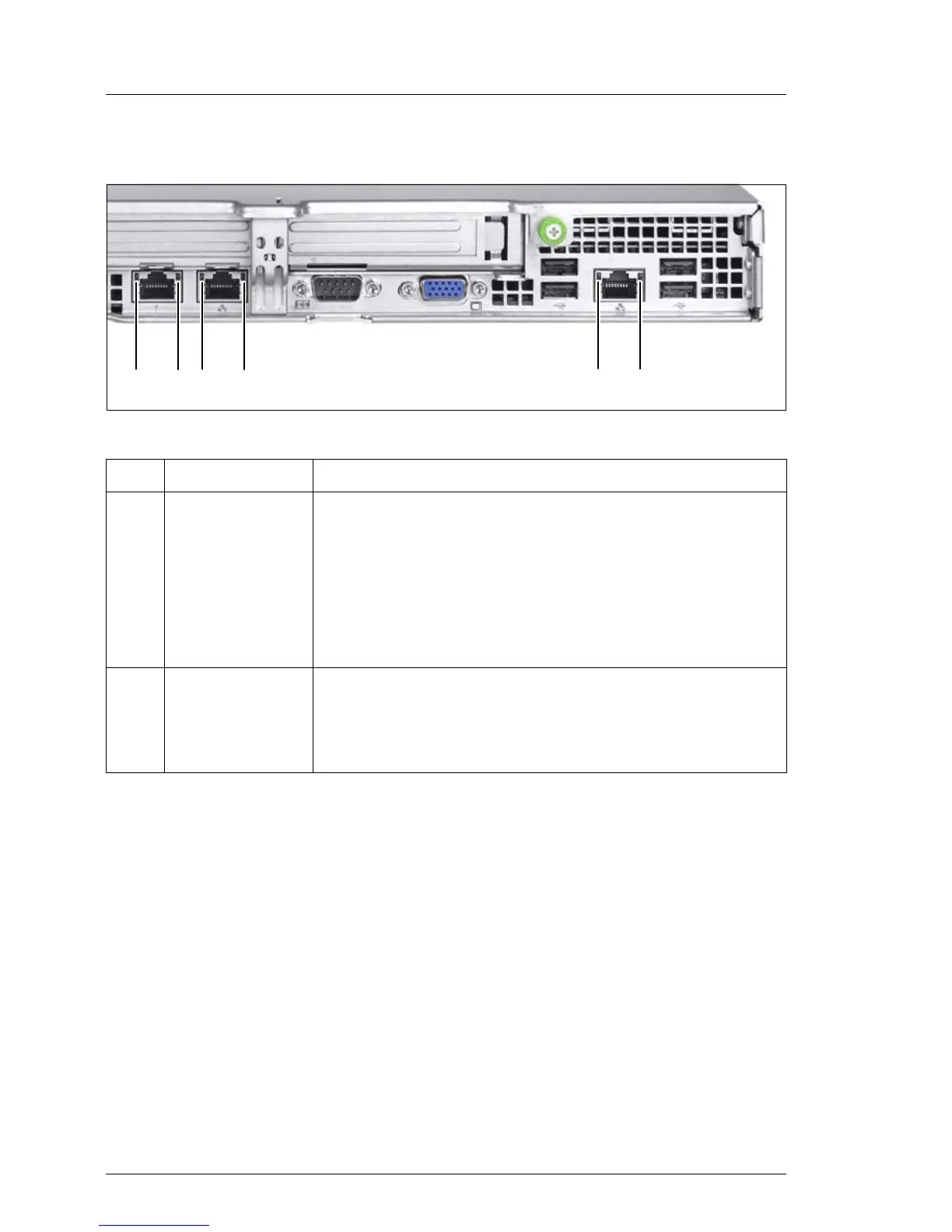

Figure 10: LAN indicators
LED Indicator Description
1 LAN speed Steady yellow signal in the event of a LAN transfer
rate of 1 Gbit/s
Steady green signal in the event of a LAN transfer
rate of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
2LAN
link/transfer
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
