Starting up and operation
6.1.1.4 Indicators on the accessible drives/components
Optical drive activity indicator
Lights up green when the storage medium is being accessed.
Indicators on the hot-plug HDD module

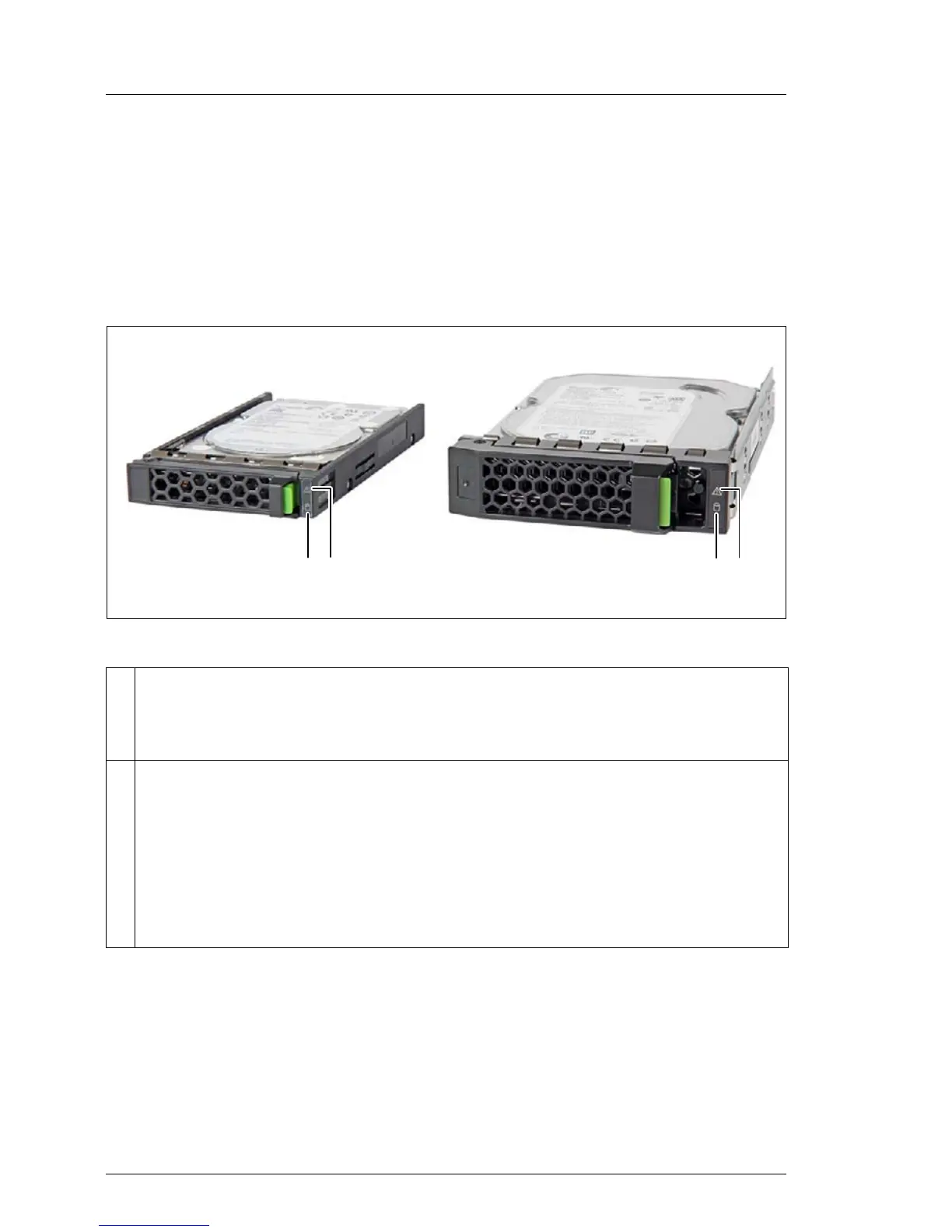

Figure 8: Indicators on the hot-plug HDD module
1 HDD BUSY (green)
– Lit: HDD in active phase (drive active, drive being accessed)
– Does not light: HDD inactive
2 HDD FAULT (orange)
– Does not light: no HDD error
– Lights up: HDD Faulty or Rebuild Stopped (drive defective/needs
replacing, a rebuild process was stopped or the HDD module is not
correctly inserted)
– Slow flashing: HDD Rebuild (the data is being restored after changing
a drive)
