RX900 S2 Operating Manual 61
Hardware installation

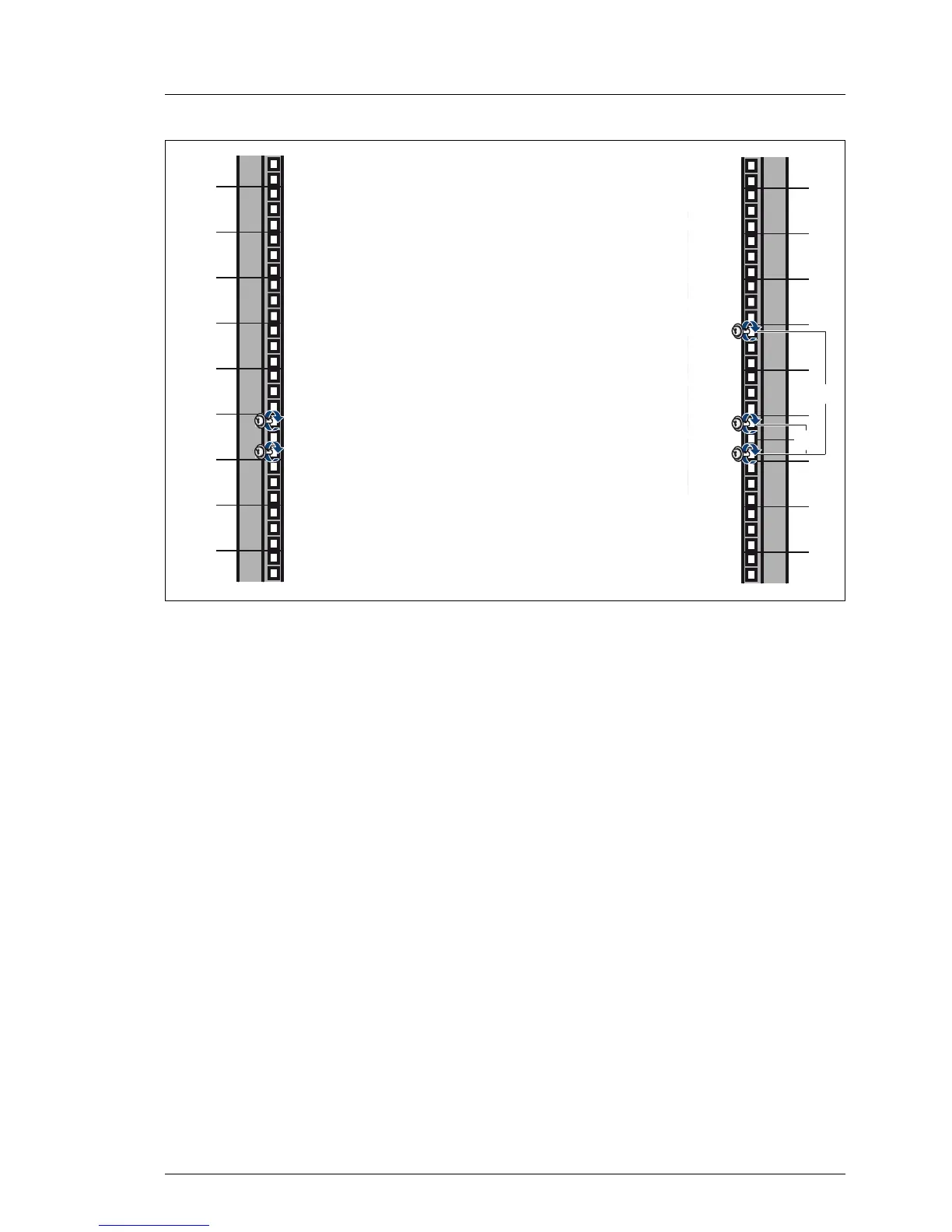

Figure 5: Position of the server in the rack - rear support uprights
Ê Clarify the position of the server in the rack.
Ê Mark the position of the bottom edge of the system unit on the support
uprights.
Ê Fit the cage nuts for securing the server in the corresponding catches on the
right and left support uprights.
– Upper cage nut: 1st catch of the 8. HU
– Lower cage nut: 3rd catch of the 1. HU
Fitting the support bracket
The supplied support bracket must be mounted flush with the underside of the
device on the rear left support upright, before the left rail can be mounted in the
rack.
0. HU
7. HU
6. HU
5. HU
4. HU
3. HU
2. HU
1. HU
1
0
8. HU
