U41629-J-Z156-2-76 Options Guide 29
Main memory Extending/replacing the main memory

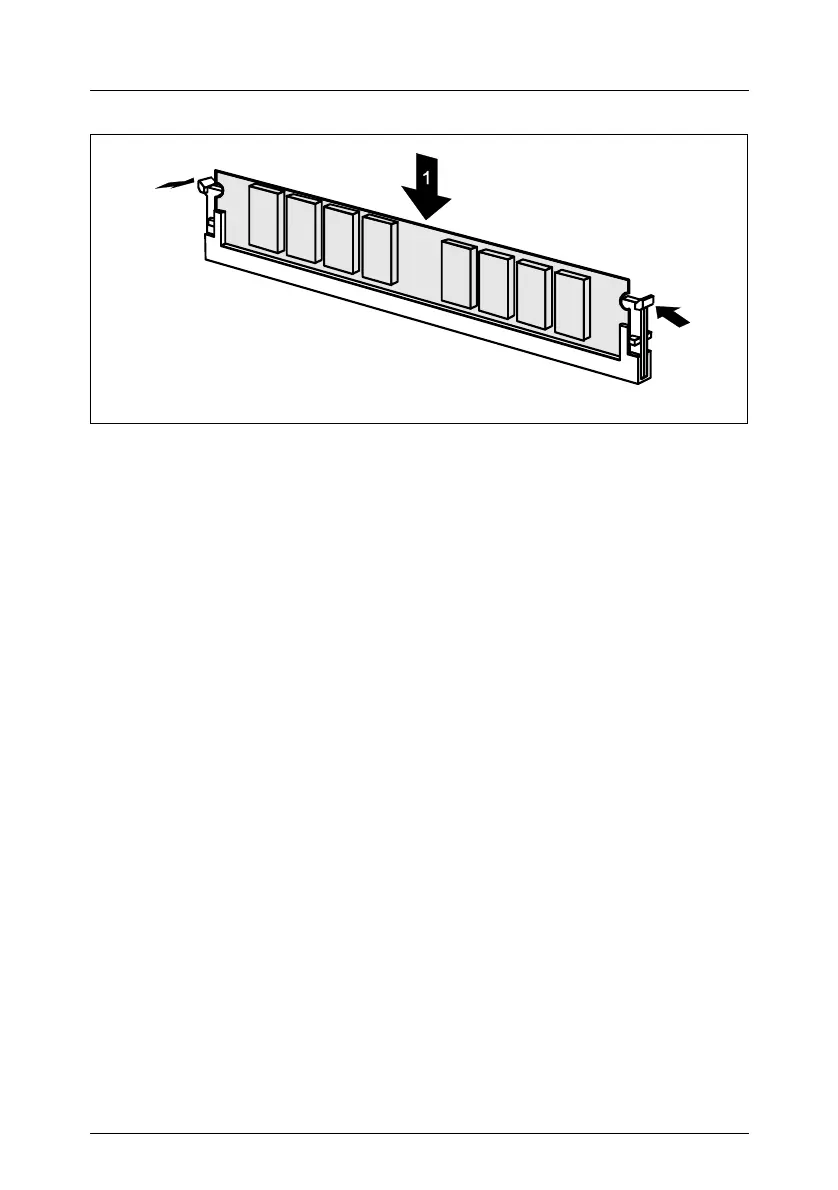

Figure 13: Inserting a memory module
Ê Flip outwards the ejector tabs on each side of the desired slot (1).
Ê Carefully press the memory module into the DIMM slot until the ejector tabs
engage on both sides of the memory module (2).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 67 et seqq..
2
2
