U41629-J-Z156-2-76 Options Guide 25
Preparation Rack model
4.2.2 Removing the rack front cover
The rack front cover has to be removed before installing further accessible
drives:

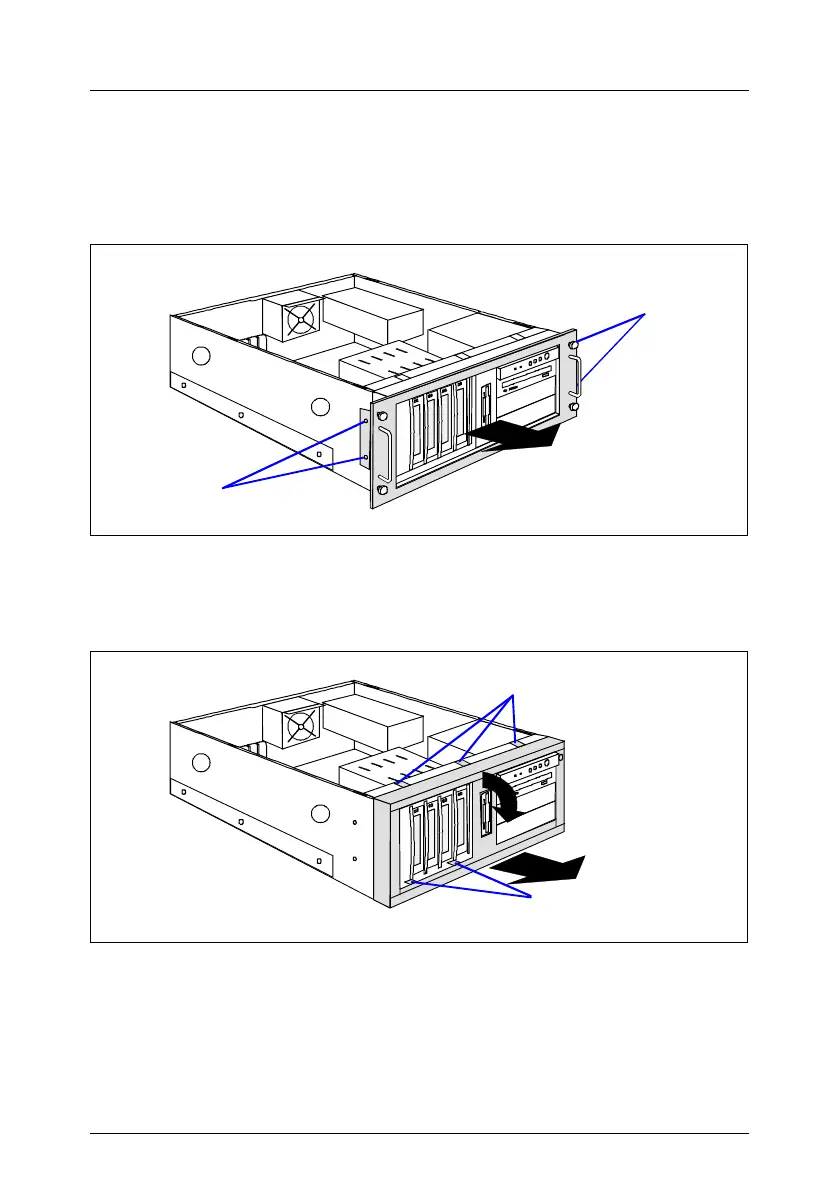

Figure 9: Removing the rack front cover
Ê Remove two screws on either side (1).
Ê Remove the rack front cover to the front (2).
Figure 10: Removing the plastic front cover
Ê Disengage the three latches (1) on the top side one after the other and pull
out the plastic front cover approximately 2 cm (2).
Ê Press the two hooks (3) on the bottom side, carefully pull out on the plastic
front cover and remove it to the front (4).
1
1
2
1
3
2
4
