U41629-J-Z156-2-76 Options Guide 33
Accessible drives Installing an accessible 5.25-inch drive
Ê Attach the front cover or rack front cover, close the server, connect it to the
power outlet, and switch it on as described in the chapter “Completion” on
page 67 et seqq..
You will find in the following figures which holes and screws should be used for
the magnetic tape dives.

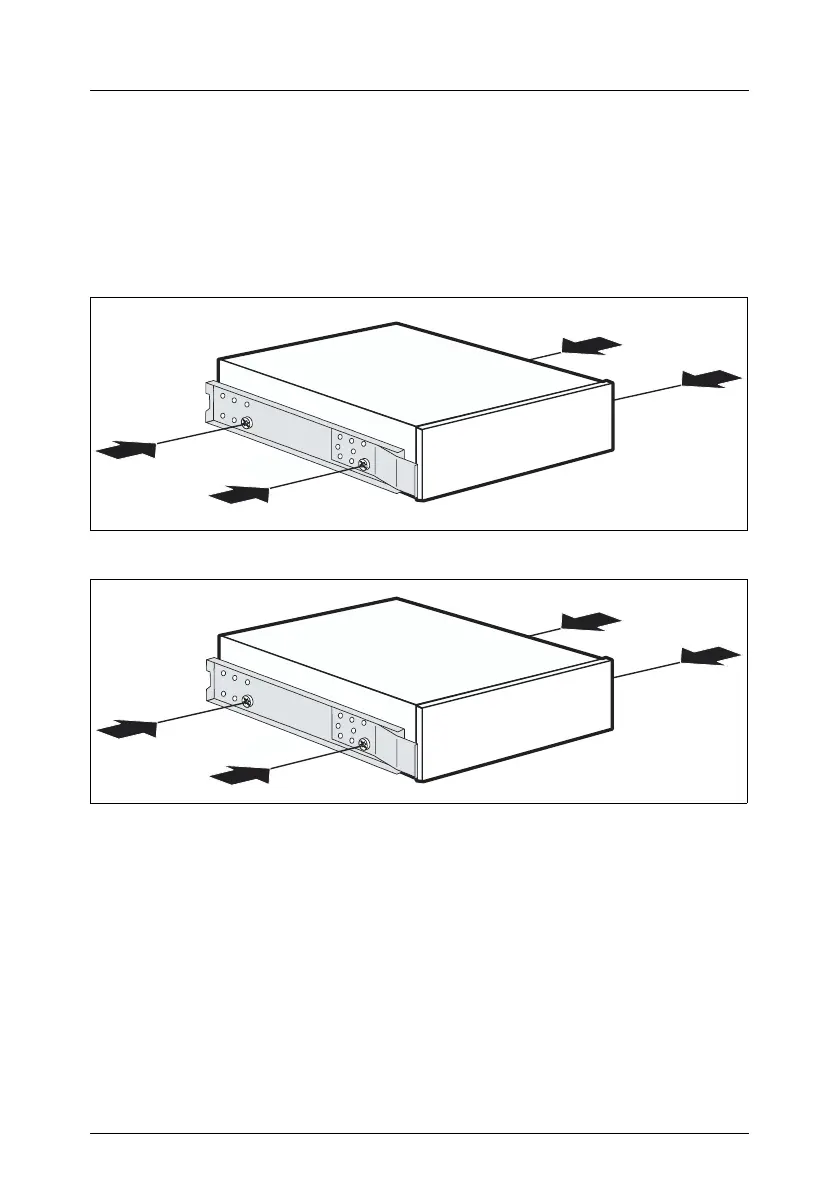

Figure 16: Attaching the EasyClick rails - tape drives LTO Ultrium 1HH / 2FH
Figure 17: Attaching the EasyClick rails - tape drives VXA-2 and DDS Gen5
