58 Options Guide U41629-J-Z156-2-76
Conversion standard PS to hot-plug PS
Mounting the anti-tilt bracket (only floorstand model)
Ê Attach the left-hand side cover as described in section “Closing the server”
on page 69.

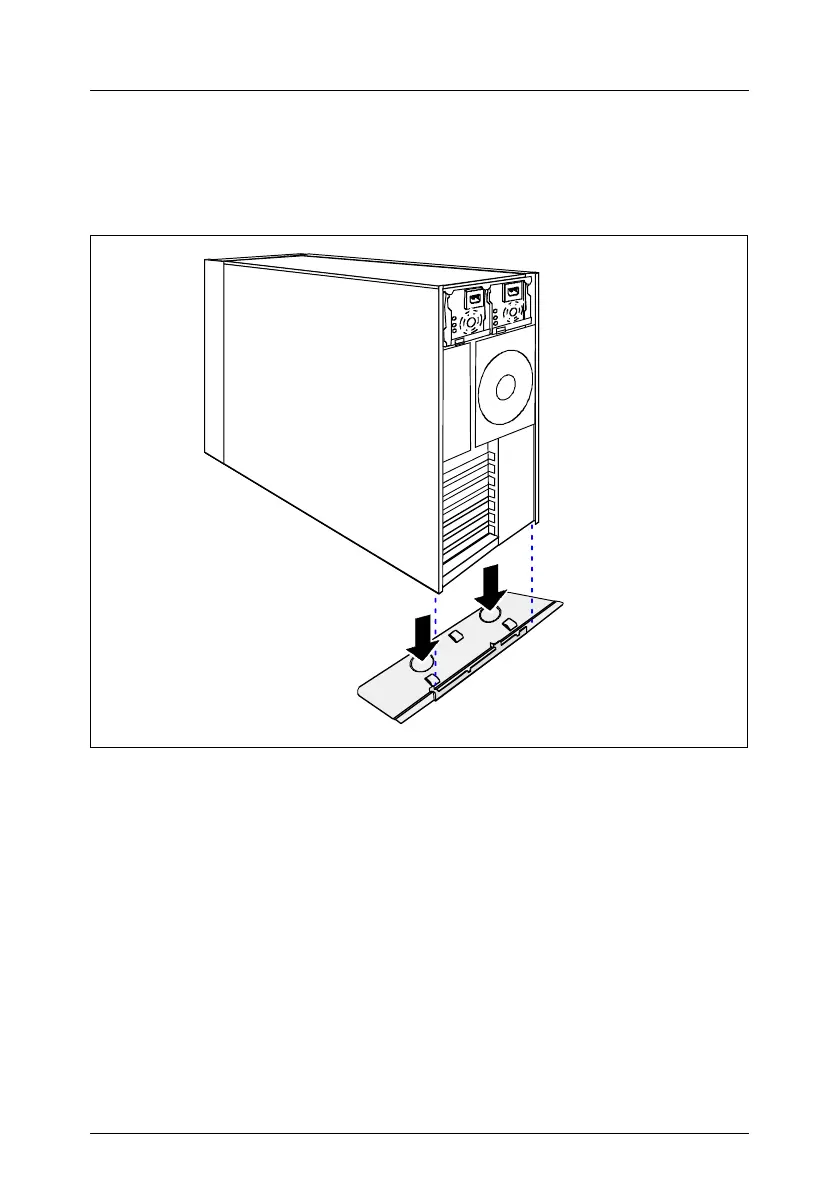

Figure 38: Mounting the anti-tilt bracket
Ê Position the server on the anti-tilt bracket in the way that the rubber feet of
the server fit into the openings of the bracket (1).
1
1
