U41629-J-Z156-2-76 Options Guide 63
Converting from the floorstand model to the rack model
Ê Lay the server on its right-hand side.
V CAUTION!
Get a second person to help you do this. The server can weigh up to 40
kg.

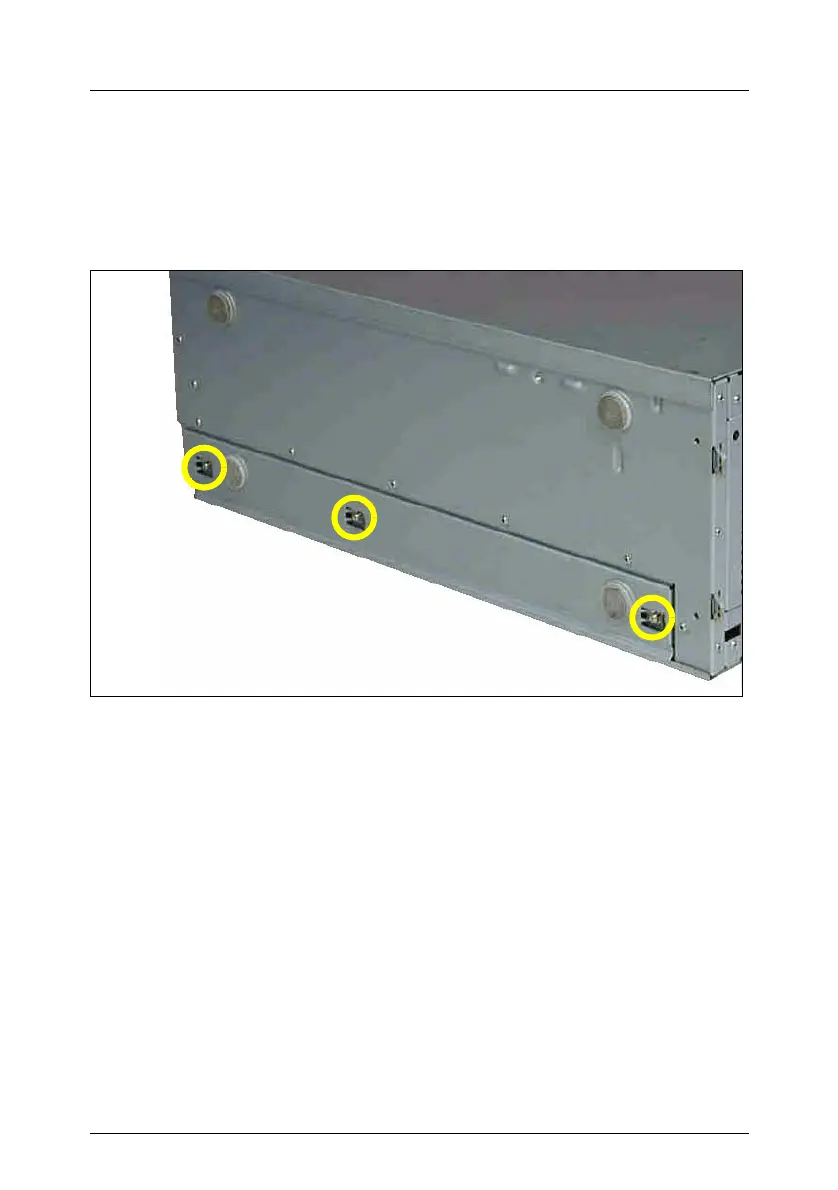

Figure 43: Removing the rubber feet
Ê Remove the three screws (see the circles) and take out the rail with the two
lower rubber feet.
I The rubber feet and the rail are no longer required.
