U41629-J-Z156-2-76 Options Guide 73
Completion Rack model
If you have not removed the server from the rack cabinet, please skip this page.
V CAUTION!
At least two people are required to install the server in the rack cabinet.
Do not use the handles on the rack front cover to lift the server into the
rack.
Ê Pull the mounted telescopic rails completely out toward the front. They must
click into place so that you can no longer push them back.

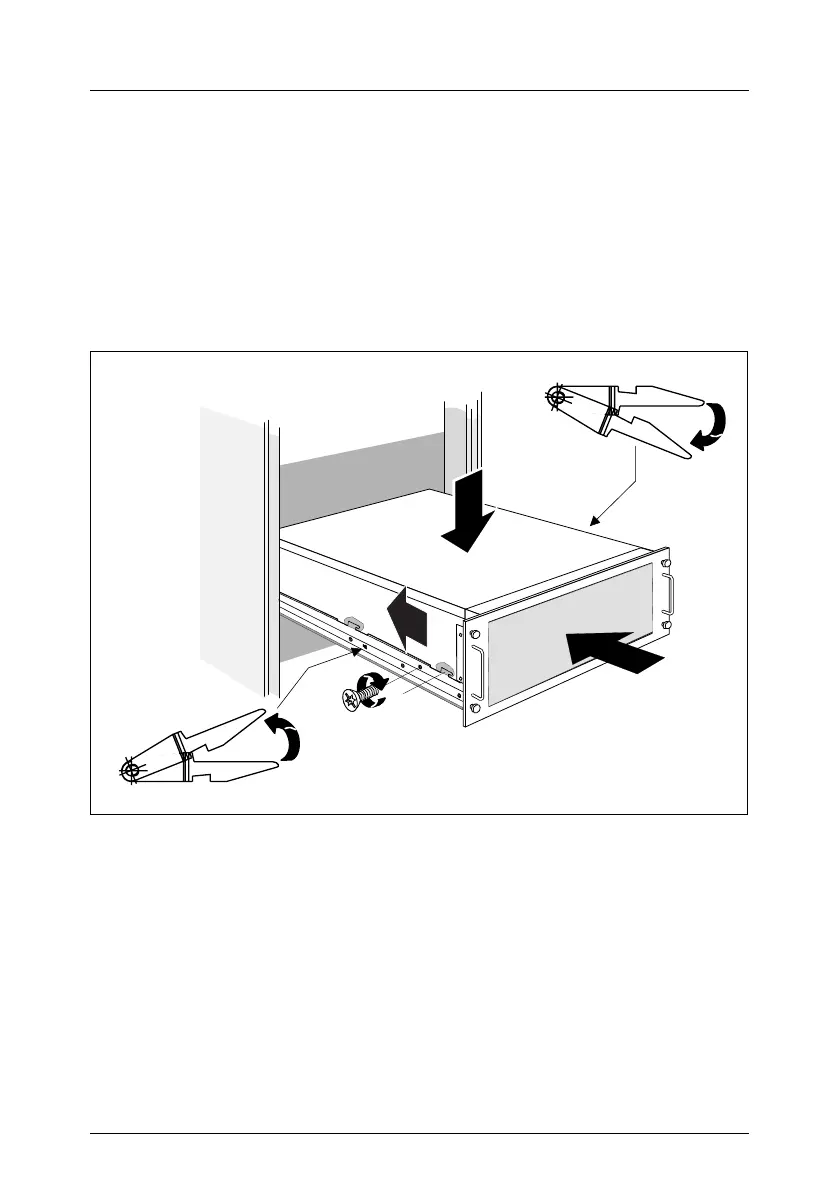

Figure 52: Installing a server in the rack cabinet
Ê Lift the server onto the two projecting telescopic rails (1).
V CAUTION!
Never lift or transport the server using the handles on the front panel.
Ê Slide the server a little in the direction marked (2a) until the noses (2b)
engage. When doing this, ensure that the telescopic rails are kept in a locked
position.
Ê Secure the server to the telescopic rails using two M3x6 screws for each
side one (3).
2a
5
4a
4b
3
2b
1
