9.3 Replacing the Pick Roller
ScanSnap S510M Operator's Guide 225
Replacing Consumables
9

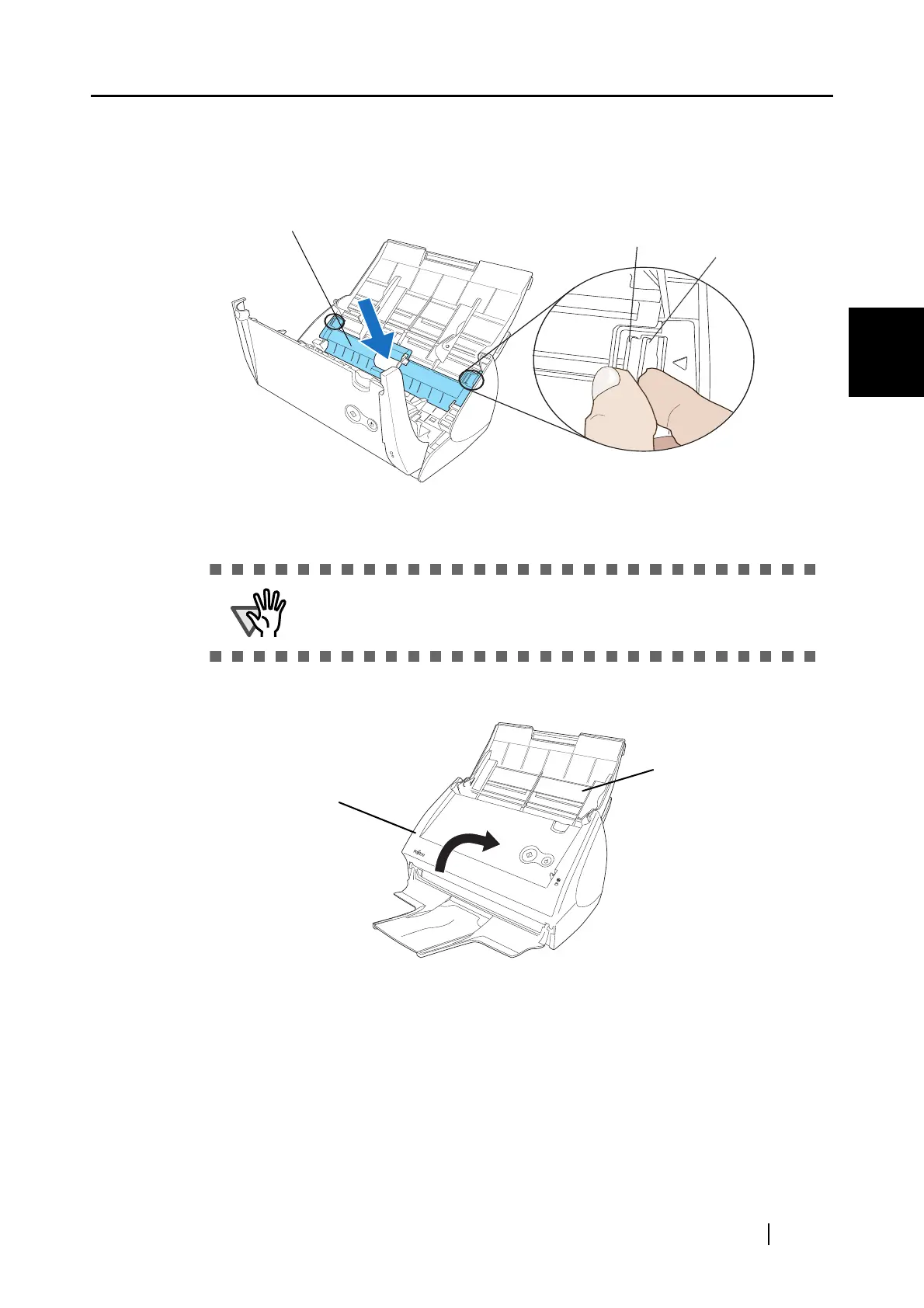

11. Attach the sheet guide to the ScanSnap.
Hold the pickup tabs on the sheet guide between the thumb and index finger, and then attach
the sheet guide to the ScanSnap.
⇒ The sheet guide makes a clicking sound when the knobs fix into position.
12. Close the ADF.
⇒ You should hear the ADF click when it returns to its original position.
13. Turn on the ScanSnap.
ATTENTION
Make sure that the sheet guide is completely attached. Otherwise,
document jams or other feeding errors may occur.
Pick-up tab
Sheet guide
Pick-up tab
Paper chute
ADF
