LAN ports

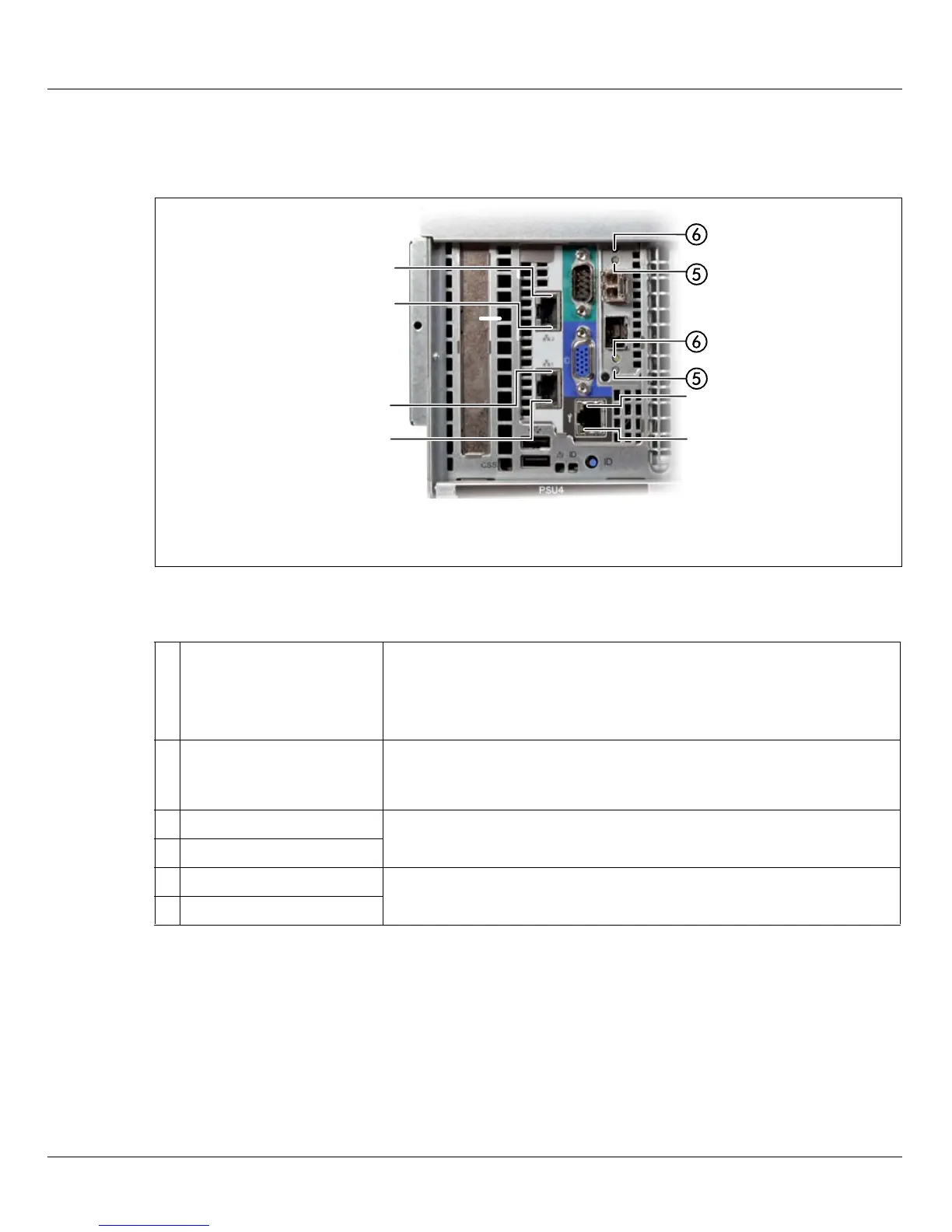

Figure 6: LAN ports on the Application Unit

The MAC addresses entered on the green ID card refer to LAN #1 (SYS1) and #2 (SYS2).

The MAC addresses of LAN ports #3 (not used) and #4 (not used) are then the next two

MAC addresses in ascending order. The green ID card is located on the front of the Appli-

cation Unit, see item 1 in figure 1 on page 10.

1 LAN link/transfer

(System LAN port SYS1

or SYS2)

Lights up green if a LAN connection exists.

Does not light up if no LAN connection exists.

Flashes green when a LAN transfer is in progress.

2 LAN speed

(System LAN port SYS1

or SYS2)

Lights up yellow for a LAN transfer rate of 1 Gbps.

3 LAN speed

Unused port

4 LAN link/transfer

5 LAN speed

Unused port

6 LAN link/transfer

햴

햵햲

햲

햳

SYS2

SYS1
