CHAPTER2 Dependence Functions
■ Examples of flash memory synchronization
● In the case of [Flash -> Debugger]
An image in the case where the flash memory synchronization [Flash -> Debugger] has been performed is
shown below.

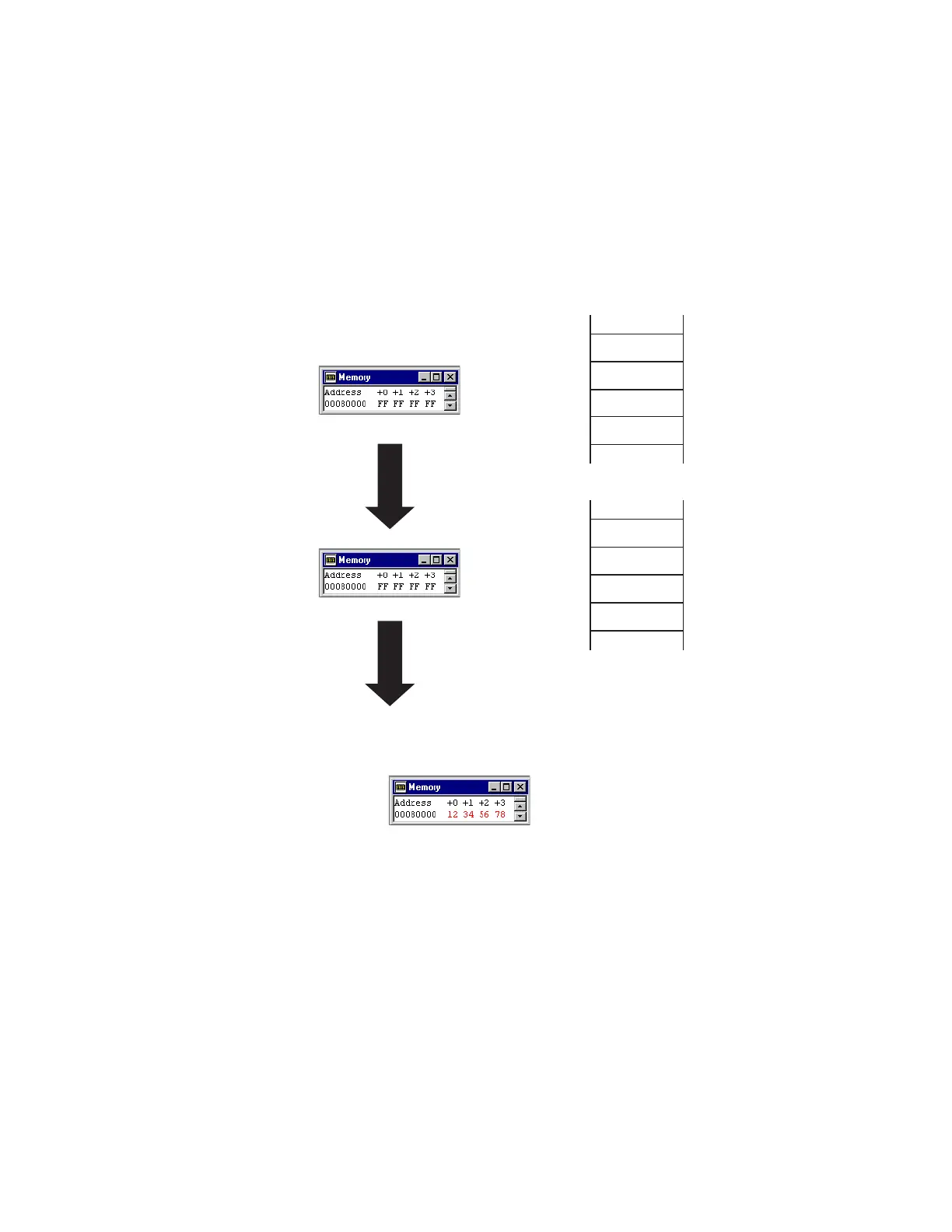

Figure 2.4-4 Variations in the values of the internal debugger and flash memory in the case of the flash
memory synchronization [Flash -> Debugger]
FF
FF
FF
FF
12
34
56
78
Occurrence of flash memory synchronization
[Flash -> Debugger]
Debugger Flash memory
Execution of a user program
that writes to the flash memory
Synchronization [Flash -> Debugger]
