1-8 SPARC Enterprise M4000/M5000 Servers Overview Guide August 2009

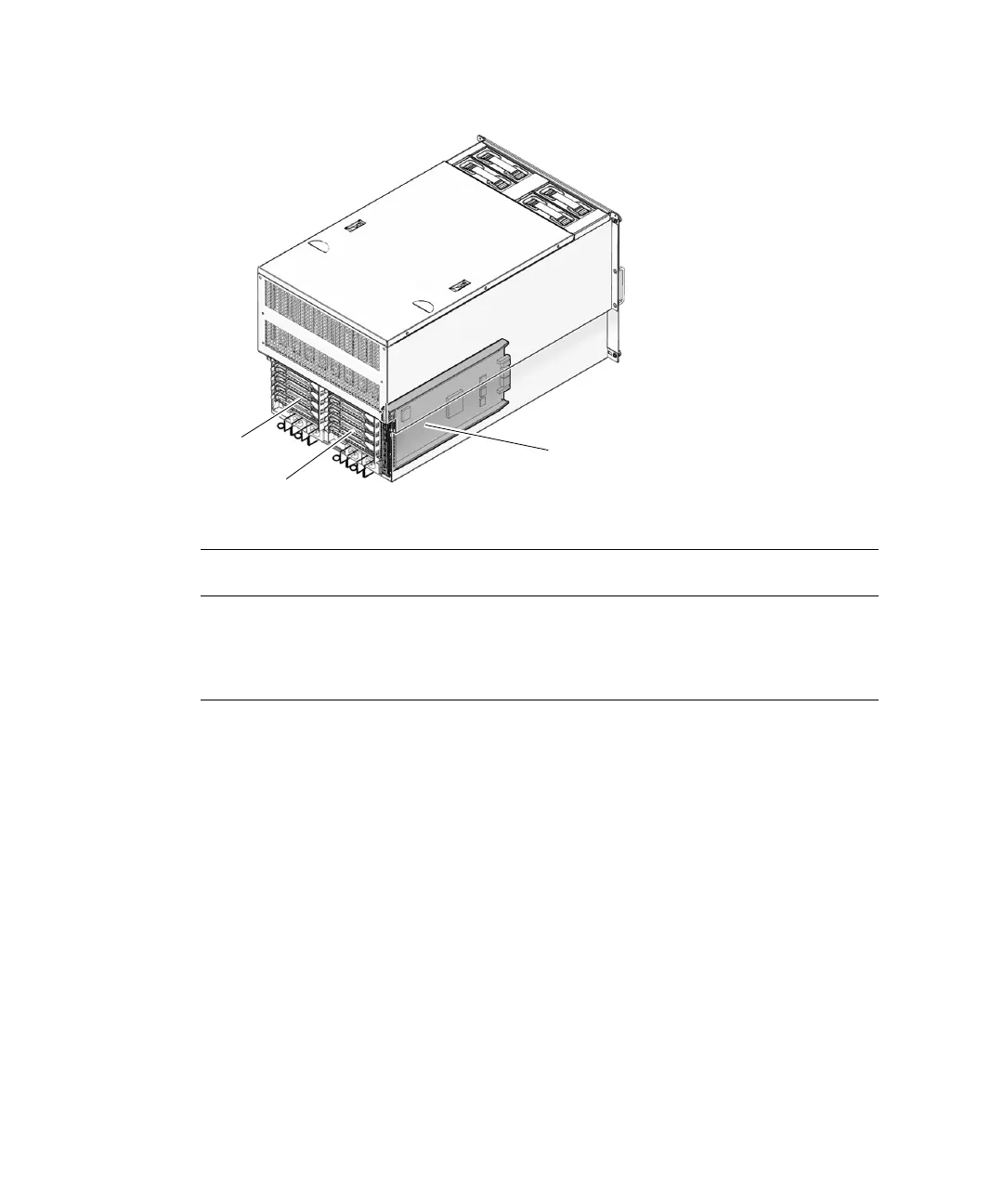

FIGURE 1-5 SPARC Enterprise M5000 Server (Rear View)
1.2.3 Operator Panel Overview
The operator panel, which is identical for both midrange servers, is located on the
front of the server in the upper right corner. The operator panel is used for the
following tasks:
Displaying the server status
Storing server identification information
Storing user setting information
Turning on the power supply of all domains
Changing operational and maintenance mode by using the mode switch
See Section 1.3.6, “Operator Panel” on page 1-21 for a description of the LEDs and
status indicators.
Location
Number Component
Maximum Number
per Server
1 eXtended System Control Facility Unit (XSCFU) 1
2 I/O unit (IOU)
Each I/O unit supports one PCI-X slot (lowest slot) and four
PCIe slots (four upper slots)
2
2
2
1
