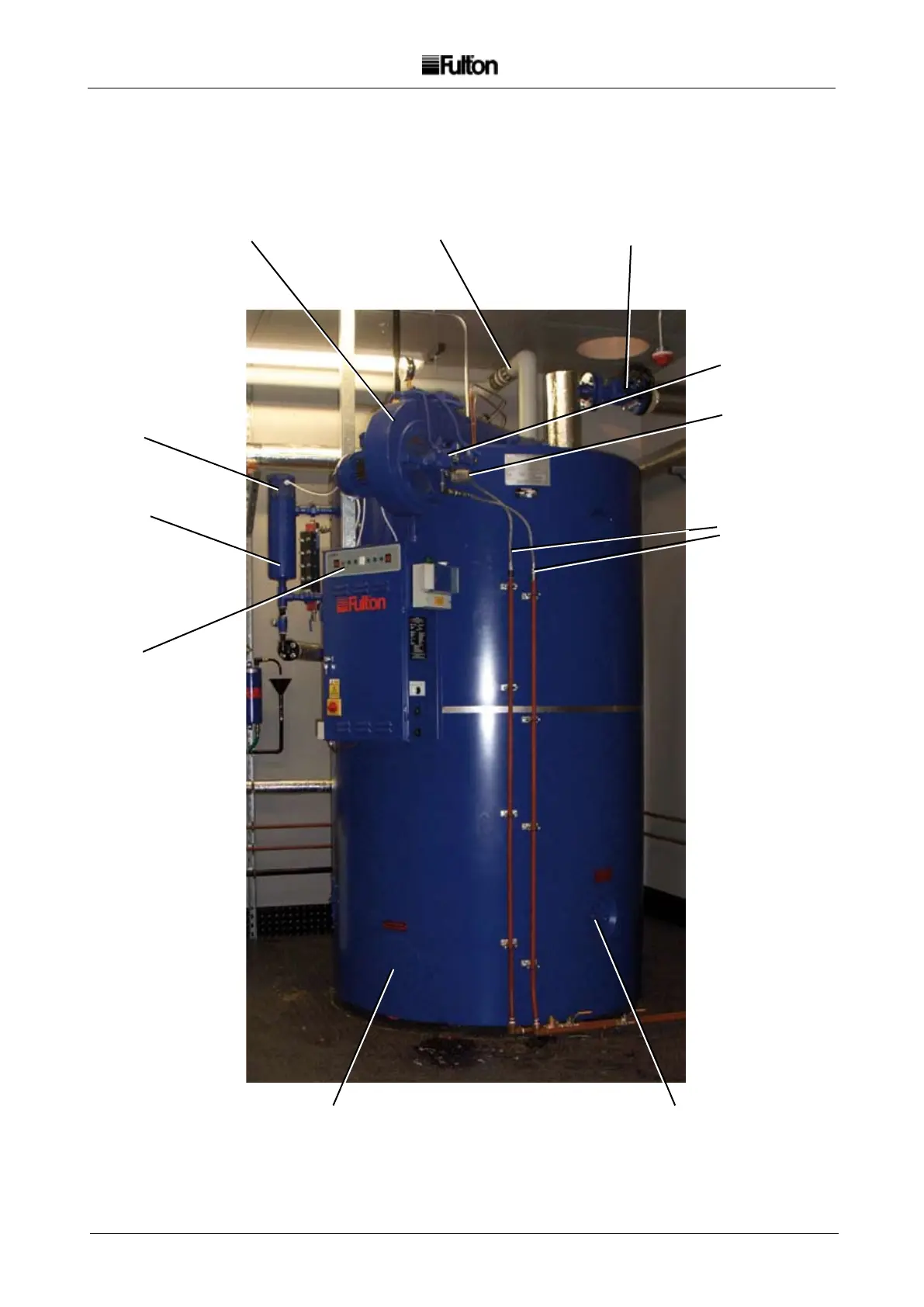

FIG.1 OIL FIRED STEAM BOILER
1
1
Steam Supply Valve
Oil
Strainer
Boiler
Control
Panel
Oil
Feed /
Return
Lines
Air Intake Manifold
Oil
Pump
Water
Column
Probes
1
Water
Column
Cleanout Door
(uepassesand
ameturnaround)
Handhole
(Pressure Vessel
Inspection)
Feed Water to Boiler
