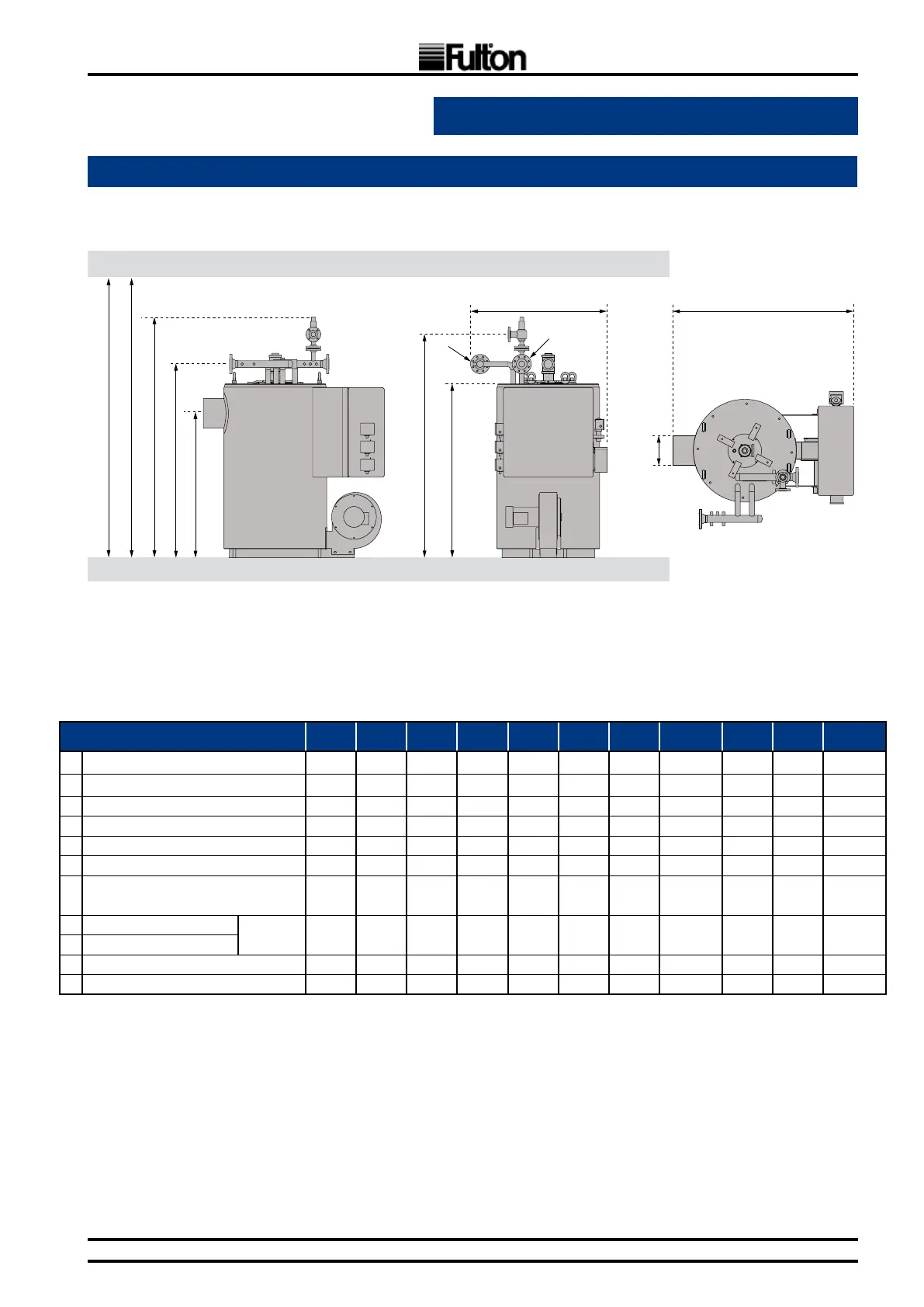

FT-C Vertical Electric Thermal Fluid Heater Manual 12 2013 ISSUE 1
* Required for service and maintenance. In addition to dimensions above, 1 m should be left clear at the front and 0.5 m at all sides
to protect combustible materials.
Minimum Clearance * 2755 2917 3000 3174 3673 3775 4325 4358 4382 4351 4771
Clearance for Coil Removal 2835 3097 3180 3554 4153 4655 6005 6038 6062 6031 6851
Overall Width 803 873 1165 1273 1252 1252 1611 1791 2413 2753 2753
Overall Depth 1173 1540 1540 1691 2046 2046 2237 2736 3432 3882 3882
Overall Height 1872 2050 2046 2278 2556 2856 3648 3632 3721 3718 4144
Heater Height 1235 1397 1480 1654 2153 2255 2805 2838 2862 2831 3251
Safety Valve Discharge Height 1745 1900 1900 2105 2367 2667 3483 3400 (2)
3465
3551
3467
3553
3978 (2)
Thermal Fluid Outlet
Height 1492 1651 1648 1826 2070 2370 3108 3131 3189 3186 3577
Thermal Fluid Inlet
Flue Outlet Height 940 1124 1229 1375 1821 1826 2410 2380 2362 2348 2750
Flue Diameter 254 254 254 305 356 356 457 508 508 559 559
Dimensions mm
Dimensions are approximate and only intended as a guide to aid installation.
B
K
H
J
C
D
E
F
G
H
J
L
A
