FULTON VSRT 50 - Page 39

INSTALLATION  2
Questions? Call (315) 298-5121, or visit us online at www.fulton.com
2-29
VSRT_IOM_2018-1213
Roof
Minimum
6' Above
Any Structure
Within 30'
Support As
Necessary
Install
Appropriate
Weather
Cap
Horizontal
Run 2'
D
ra
f
t Regulator
(
If Necessary
)
Draft Regulator
(If Necessary)
Expansion Joints
As Required
Horizontal
Run 2'
Cleanout
Door
60°
(45° Min.)
Cleanout
Door
Cleanout
Door
This Distance
Must Not
Exceed 25%
Of Total Rise
Baffle
3'
3'
30°
Max
Stagger
Entrances
AA
A-A
Total
Rise
Draft Regulator
(Recommend)
(Recommend)

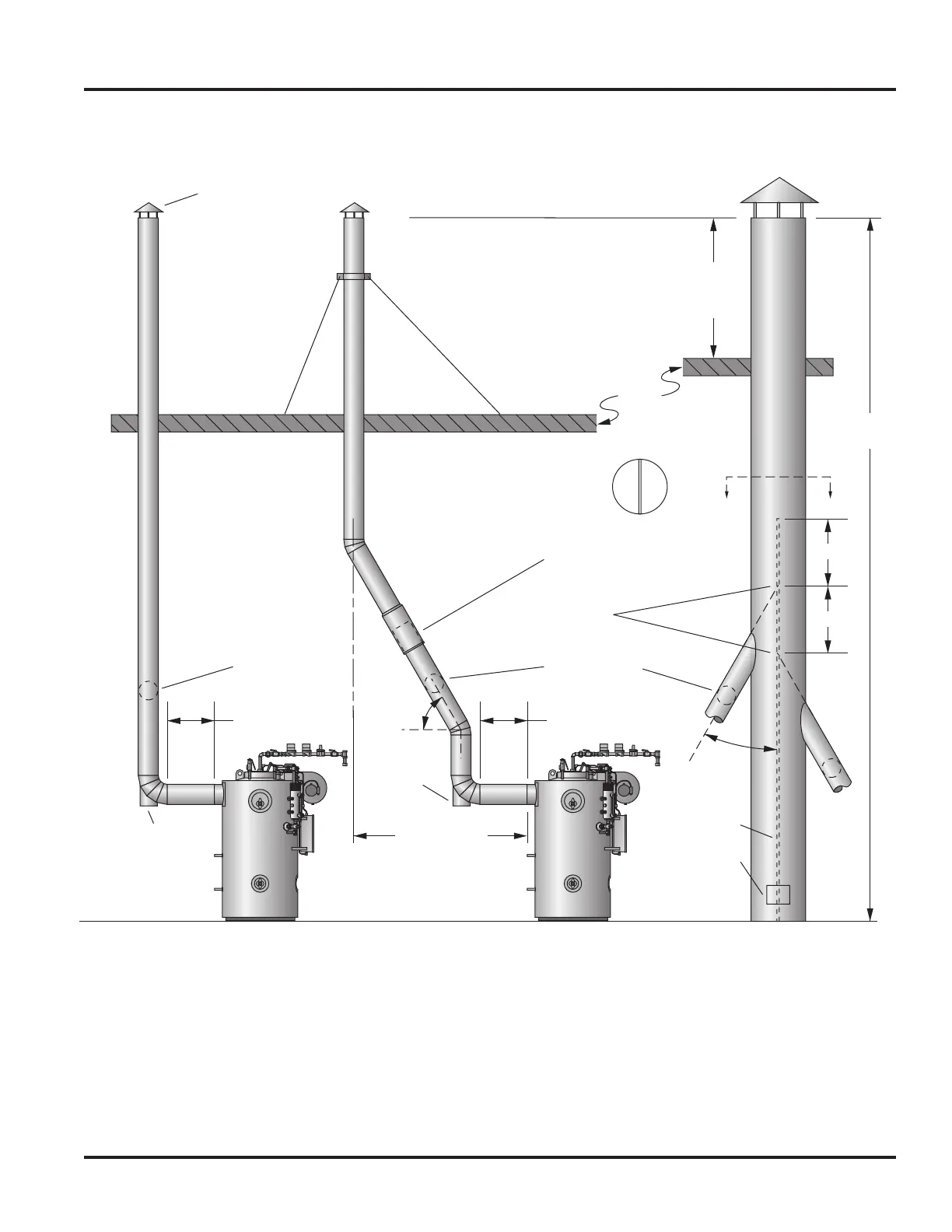

Figure 15 - Typical Stack
