EVO EXPERT Manual 98/105

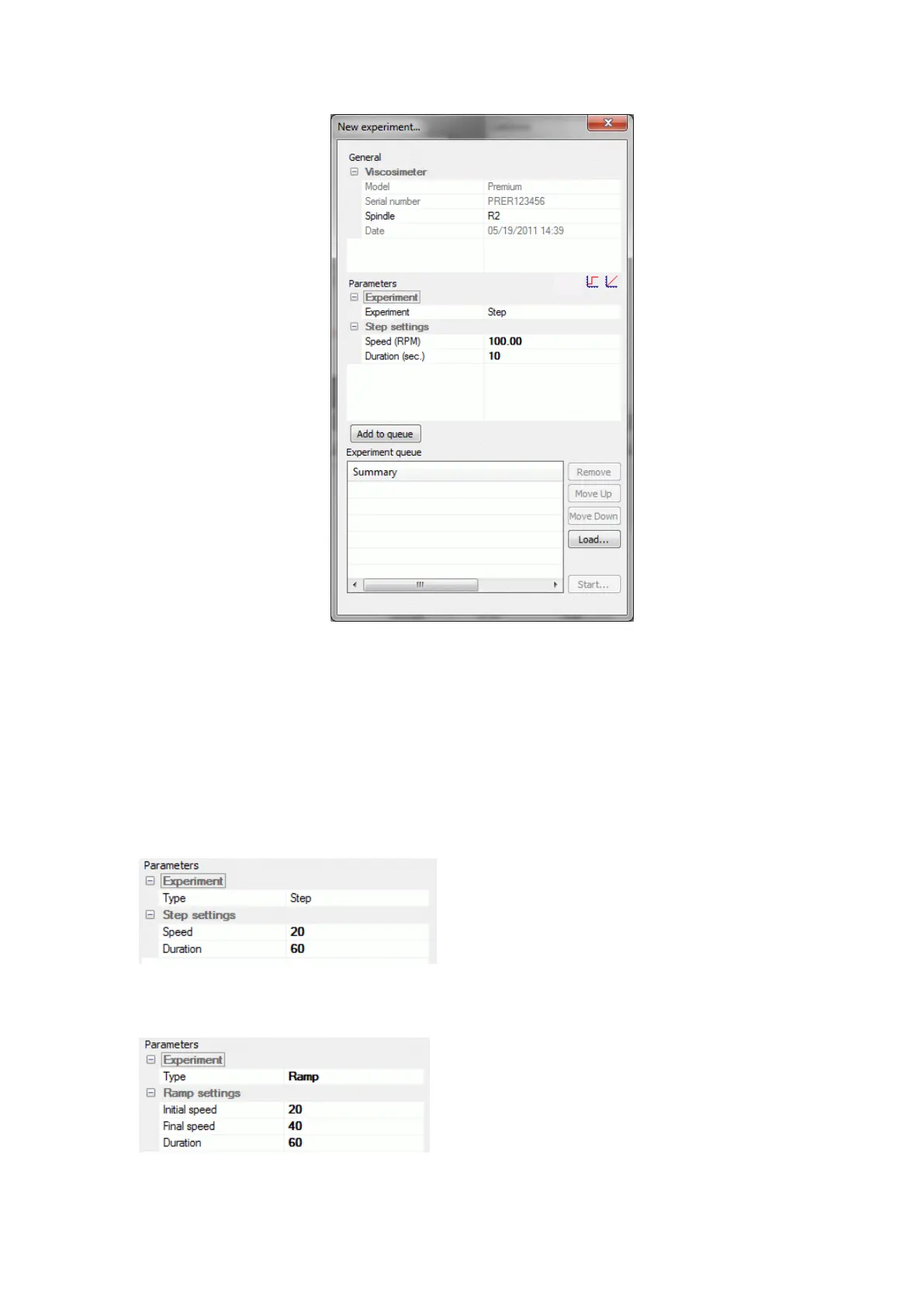

B.3.6 New Experiment Window
The New Experiment Window lets to design a new experiment.
Typical usage:
 Select a spindle.
 Select an experiment type.
 Configure the experiment parameters.
 Click Add to queue to add the current parameters to the experiment queue.
 Click Start... to process the experiment queue.
Experiment types
Step:
A step experiment gathers samples at a constant velocity. In the previous example, the samples are
taken with 20 rpm and 60 seconds.
Ramp:
A ramp experiment gathers samples at a varying velocity.
In the previous example, the samples are taken between 20 and 40 rpm along 60 seconds.
