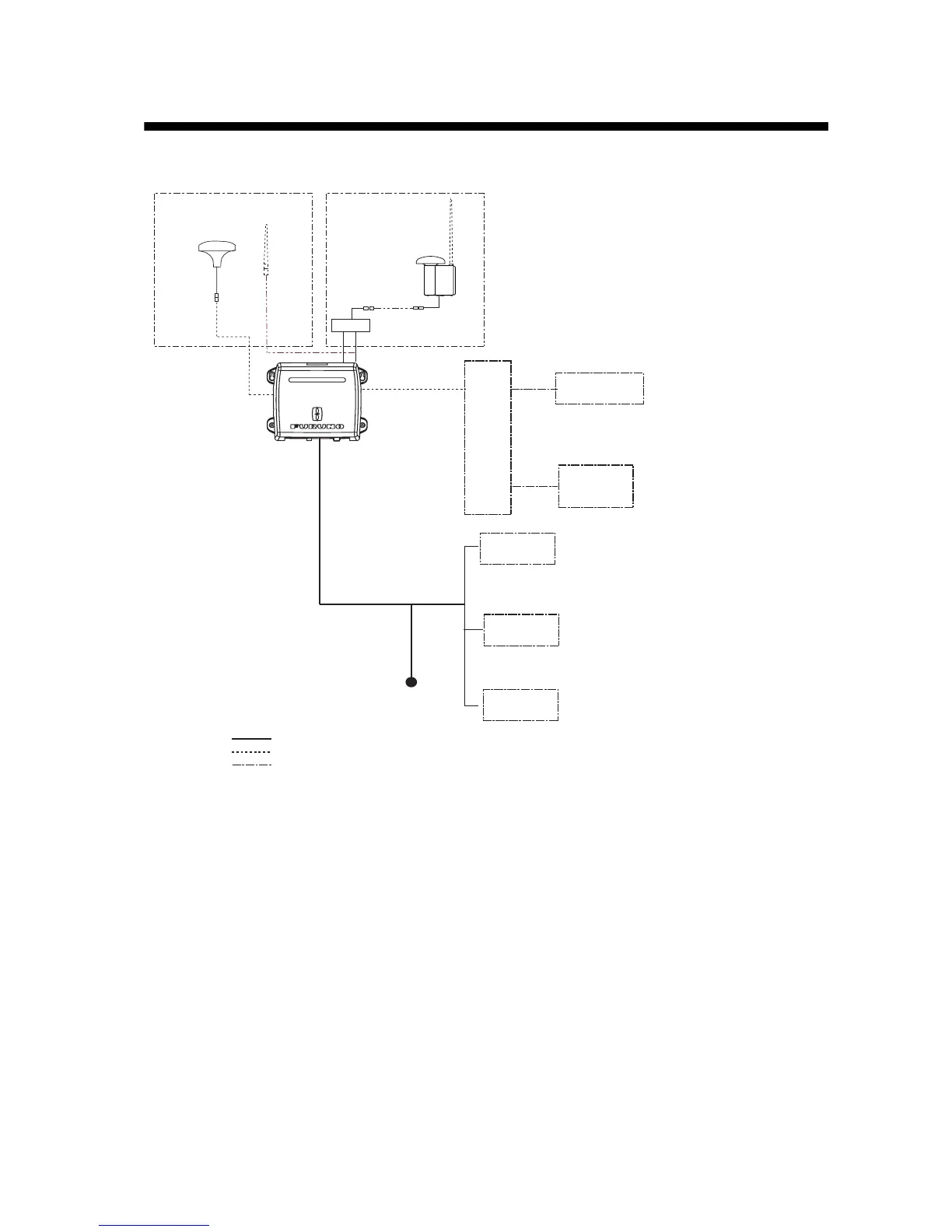

SYSTEM CONFIGURATION
AIS TRANSPONDER
FA-50
HUB
SENSOR
OR
12-24 VDC
IF-1500AIS
OR
FR-8xx2 SERIES
GPS* (ex. GP-150)
SPEED LOG
GYROCOMPASS
SATELLITE COMPASS
NAVNET
RADAR
CHART PLOTTER
ECDIS
PILOT PLUG
PC
w/FAISPC MX
EXTERNAL
DISPLAY
: Standard supply
: Optional supply
: Local supply
NAVNET
EXTERNAL
DISPLAY
GPS/VHF
combined antenna
GVA-100
GPS antenna
GPA-017S or 017
Distributor unit
DB-1
VHF
antenna
Either
*Usaually FA-50 uses the internal GPS. When connecting the
external GPS, use one which satisfies the followings.
1) Outputs DTM sentence (WGS-84 can be chosen.)
2) Outputs GBS sentence.
3) Outputs sentences with the mode indicator;
4) The measured result of internal and external GPSs should be
within 26 m.(These antenna should be located within 6 m.)
We, FURUNO, prepare GPS navigator GP-150 as the equipment
meetin
g
with requirements shown above.
GNS: Ver.3.0 and later
GLL: Ver.2.0 and later
GGA: Ver.2.0 and later
RMC: Ver.1.5 and later
