1. INSTALLATION
1-5

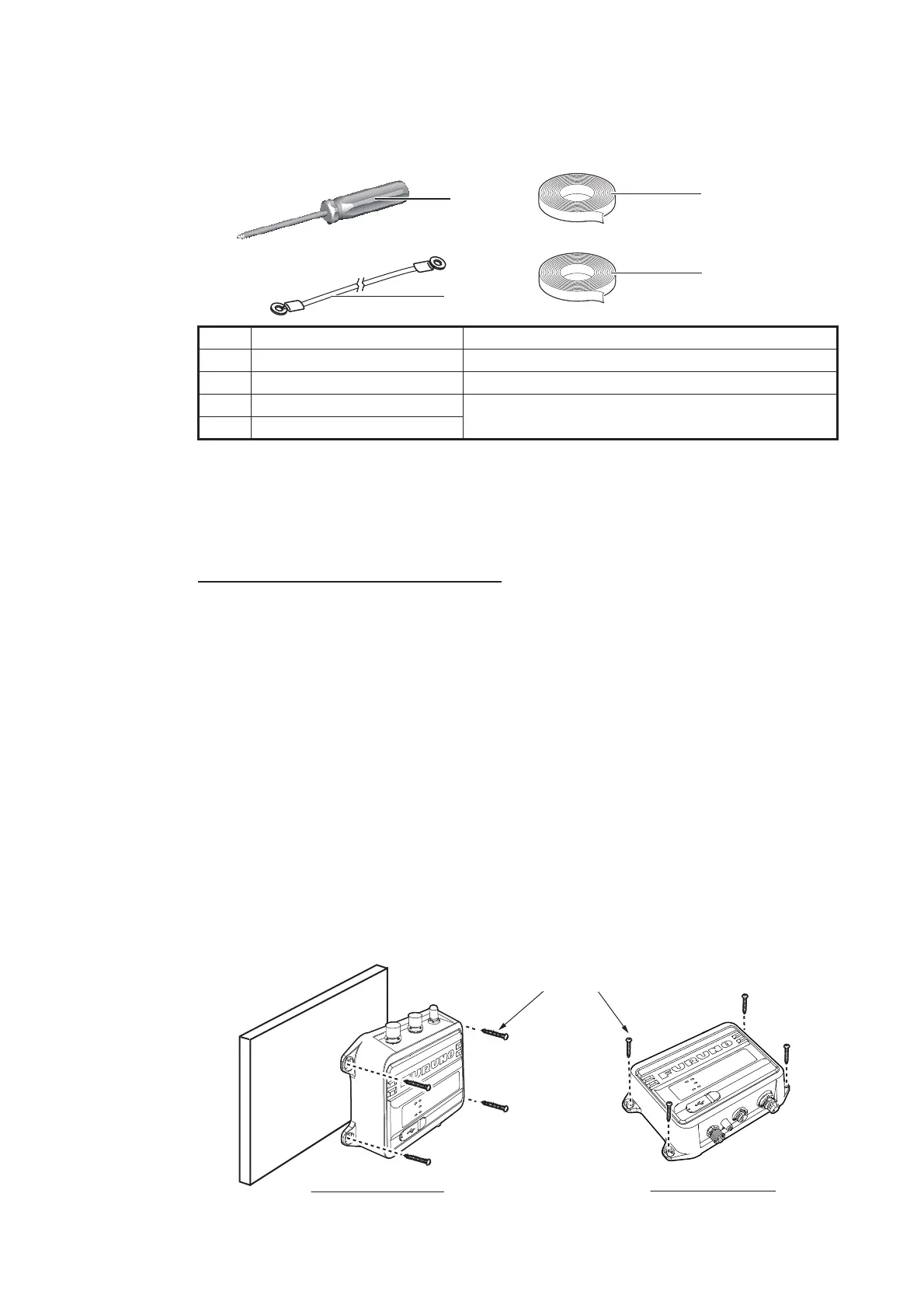

1.3 Required Tools and Materials
The following tools should be prepared in advance for this installation.
*: For cosmetic purposes, black color vinyl tape (cable color) is recommended.
1.4 AIS Transponder FA-70
Mounting considerations, mounting
The FA-70 can be mounted on a desktop or on a bulkhead. When selecting a mount-
ing location, keep in mind the following points:
• Keep the unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field-generating equipment such as mo-
tors and generators.
• A magnetic compass will be affected if the FA-70 is placed too close to it. Observe
the compass safe distances noted in the safety instructions to prevent disturbance
to the magnetic compass.
Fix the unit to the mounting location with four tapping screws (supplied).
No. Name Remarks
1 Phillips-head screwdriver #3, for mounting the chassis
2 Ground wire IV-1.25sq
3 Self-vulcanizing tape For waterproofing the junction of connectors
4Vinyl tape*
Desktop mounting
Bulkhead mounting
Tapping screws
To Next Page
