3. SETTINGS AND STATUS
3-2
For the PC, click [Apply] or [Apply All] to confirm the settings.
3.2 Own Vessel Data Screen
The [Own Vessel Data] screen shows AIS channel, sensor status, and GNSS status.

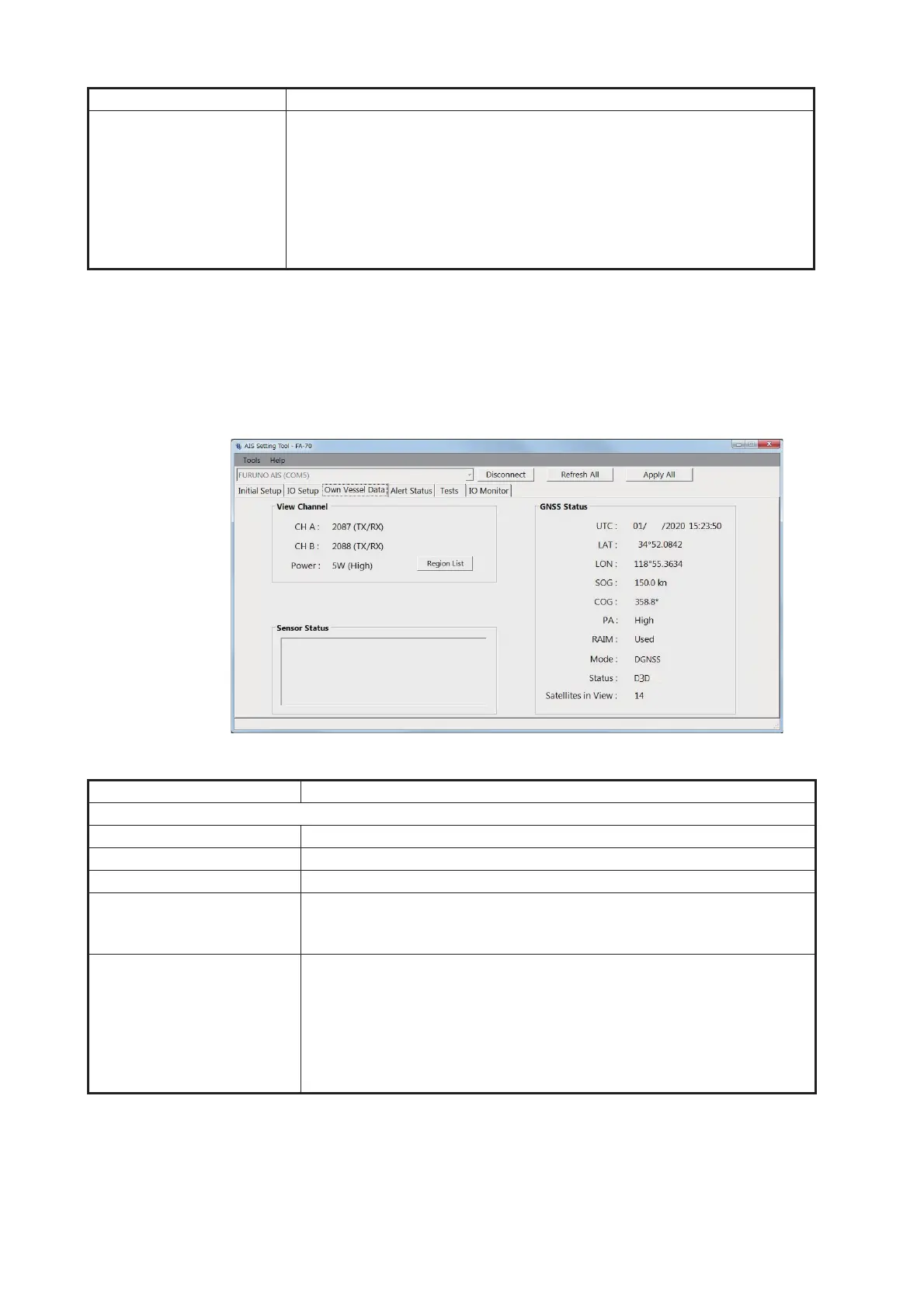

[Own Vessel Data] screen for PC
[NMEA1 Output GNSS],
[NMEA2 Output GNSS]
When selecting [GNSS] or [AIS + GNSS] in the [NMEA1/NMEA2 Output
Mode] menu, select the output GNSS sentence for NMEA1/NMEA2
among [OFF], [GGA + VTG (Sentences)], [GLL + VTG (Sentences)] or
[RMC (Sentence)].
[OFF]: Does not output GGA, VTG, GLL or RMC sentence.
[GGA + VTG (Sentences)]: Outputs GGA and VTG sentences.
[GLL + VTG (Sentences)]: Outputs GLL and VTG sentences.
[RMC (Sentence)]: Outputs RMC sentence.
Menu item Description
[View Channel]
[CH A] Shows the channel number and TX/RX mode for channel A.
[CH B] Shows the channel number and TX/RX mode for channel B.
[Power] Shows the transmission power.
[Region List] (for the PC) Shows the channel management information of local sea areas.
To take a screenshot, click [Screenshot] at the bottom right of the
screen.
[Sensor Status] Shows the information about the sensors connected to the FA-70.
• Internal DGNSS in Use: DGNSS currently in use.
• Internal GNSS in Use: GNSS currently in use.
• Internal SOG/COG in Use: SOG/COG currently in use.
• Heading Valid: Heading data is valid.
• Channel Management Parameters Changed (for the PC): Channel
parameters have been changed.
Menu item Description
Internal DGNSS in Use (Message 17)
Internal SOG/COG in Use
Heading Valid
Channel Management Parameters Changed
