Furuno FAR-2137S Service Manual

6.4 Error Messages
6-31
6.4 Error Messages
6.4.1 Messages of ALERT BOX
When an alarm or error is detected, it is displayed in the ALERT BOX by
characters. And also, available alarm and ALM output are continuously displayed, and
outputted until the alarm condition is removed. The warning beeps stops when the
[ALM ACK] key is pressed.

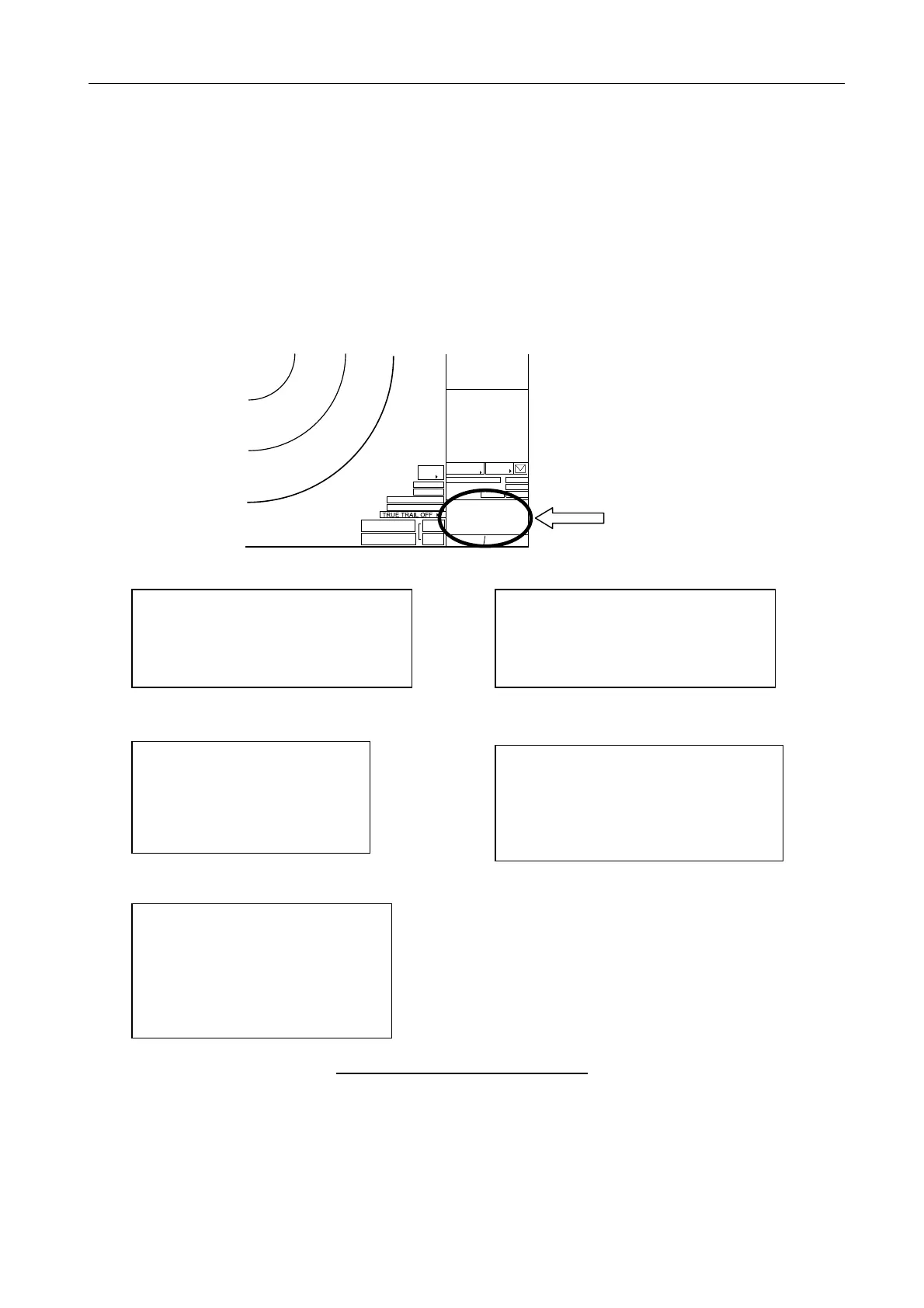

Fig. 6.4.1 Display in ALERT BOX
ARPA AIS OFF
VECTOR TRUE
30M
PAST POSN REL 3M
CPA LIMIT 0. 5NM 22MIN
TARGET
LIST
CU/TM
RESET
ALARM
ACK
TARGET
DATA & ACQ
CURSOR
MENU
GZ1
GZ2
ALARM1
ALARM2
VRM1
>3.682NM<
VRM2 5.221NM
090
100
110
120
130
140
150
160
170
180
OFF
MANU
DISP
ALERT BOX
ARP,
AIS DATA BOX
ALERT BOX
------ SIGNAL MISSING -----
GYRO LOG EPFS TRIGGER
VIDEO AZIMUTH HEADLINE
DATUM MEMORY FULL
------- ARPA ALARM -------
COLLISION GUARD LOST
ARPA SYSTEM ERROR
TARGET-FULL(AUTO+MAN)
Note-1
------ AIS ALARM ------
COLLISION LOST WT
ARPA FUSION RECEIVE
GUARD CPA/TCPA
TARGET-FULL AIS ALARM
------ OTHER ALARM -----
HEADING SET CHK INT-SW
WATCH ARRIVAL KEY RF
ANCHOR WATCH DEPTH XTE
TARGET ALARM
----- WORK IN PROGRESS -----
TUNE INITIALZE PM
USER DEFAULT SART
WR CARD DATA
Note-2
CABLE ATT ADJ
Note-3
Note-1:
TARGET-FULL (AUTO), TARGET-FULL (MAN)
Note-2: RD CARD DATA, FORMAT CARD DATA,
DELETE CARD DATA
Note-3: POWER ON RESET
