1. HOW TO INSTALL THE UNIT
8
9. Restore the lifting lugs to their original positions.

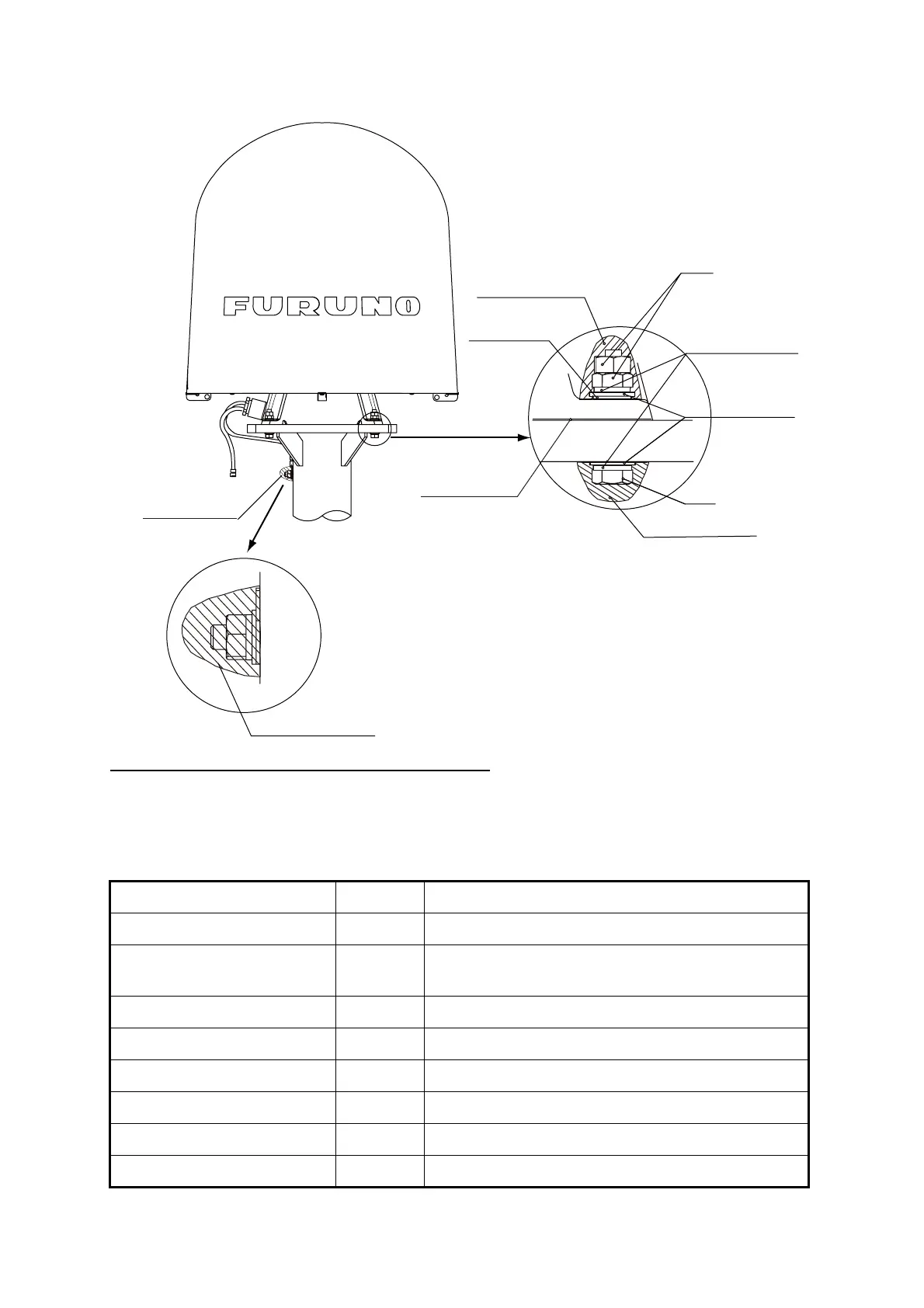

FELCOM 250: How to install the antenna unit
Carefully unpack the radome and check for damage. Run the antenna cable before installation of
the antenna unit.
Antenna unit installation materials
Item Quantity Remarks
Silicone sealant 1 50 g
Rubber mat 1 This mat may be pre-attached to the antenna unit
depending on the date of production.
Radiation warning sticker (S) 2
Radiation warning sticker (L) 1
Hex nut 12 M6
Spring washer 6 M6
Flat washer 6 M6
Ground wire 1 200 mm, W/6 mm crimp-on lug for both ends
Silicone sealant
Nut
Flat washer
Bolt
Spring washe
r
Silicone sealant
Seal washer
Silicone sealant
Rubber mat
Ground stud
