1. HOW TO INSTALL THE UNIT
7
5. Lay the rubber mat on the mounting base and put the antenna unit on the rubber mat, keeping
in mind cable gland direction (standard direction is stern).
6. Fix the antenna unit with four sets of hexagonal bolts and nuts as shown on the next page.
Note: Tighten first nut with torque 36.5 Nm, then tighten second nut with the same torque.
7. Connect the ground wire to the ground bolt.
8. Coat all bolts and nuts with silicone sealant to prevent electrolytic corrosion.

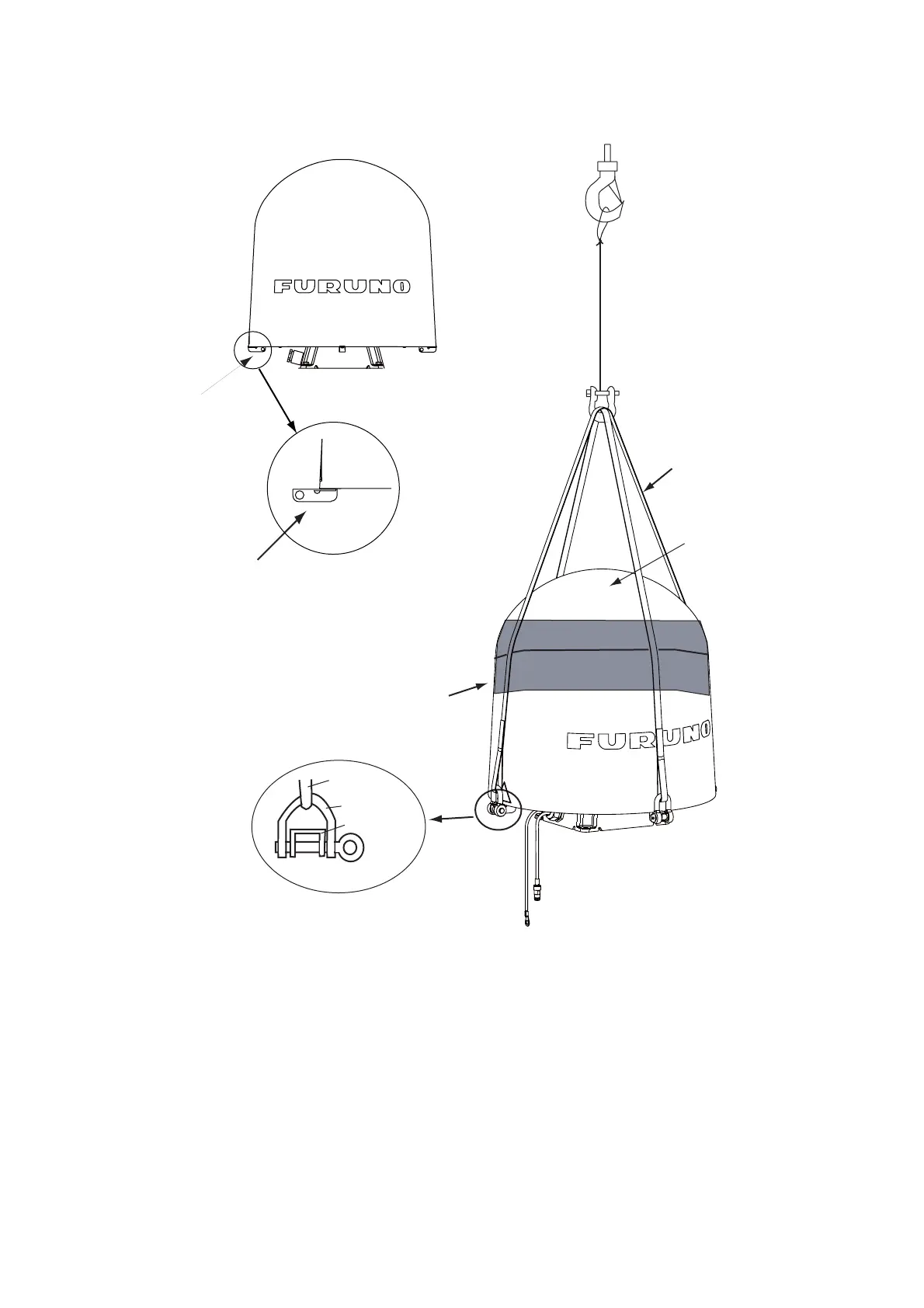

Lifting rope
Radome
Protective
Material
Turn four lifting lugs
to outside.
Rope
Shackle
Lifting lug
Lifting lug
To Next Page
