FUTABA 10J - Transmitter Controls - Airplane

Beforeuse
15
SW(B)
VR
SW(A)
SW(F)
SW(E)
SW(G)
SW(H)
SW(D)
SW(C)
This controls CH6, and if flaperon mixing
is activated controls the flap.
Flap Trim Control
Rudder Dual Rate Switch
Elevator Dual Rate
Snap Roll or
Trainer Switch
Landing Gear
Switch
/CH5
Rudder
/Throttle
Stick
Power
LED
Throttle
Trim Lever
Rudder
Trim Lever
END Key
−Key
＋Key
Aileron Trim Lever
Elevator Trim Lever
Elevator
/Aileron
Stick
Aileron Dual Rate Switch
Elevator - Flap Mixing or
Airbrake Mixing Switch
Digital Trim 6
/CH8 Control
Digital Trim 5
/CH7 Control
Carrying Handle
Built-in Antenna
Switch
Jog Key
LCD Panel
Power Switch
(Up position: ON)
Hook
(for optional neckstrap)

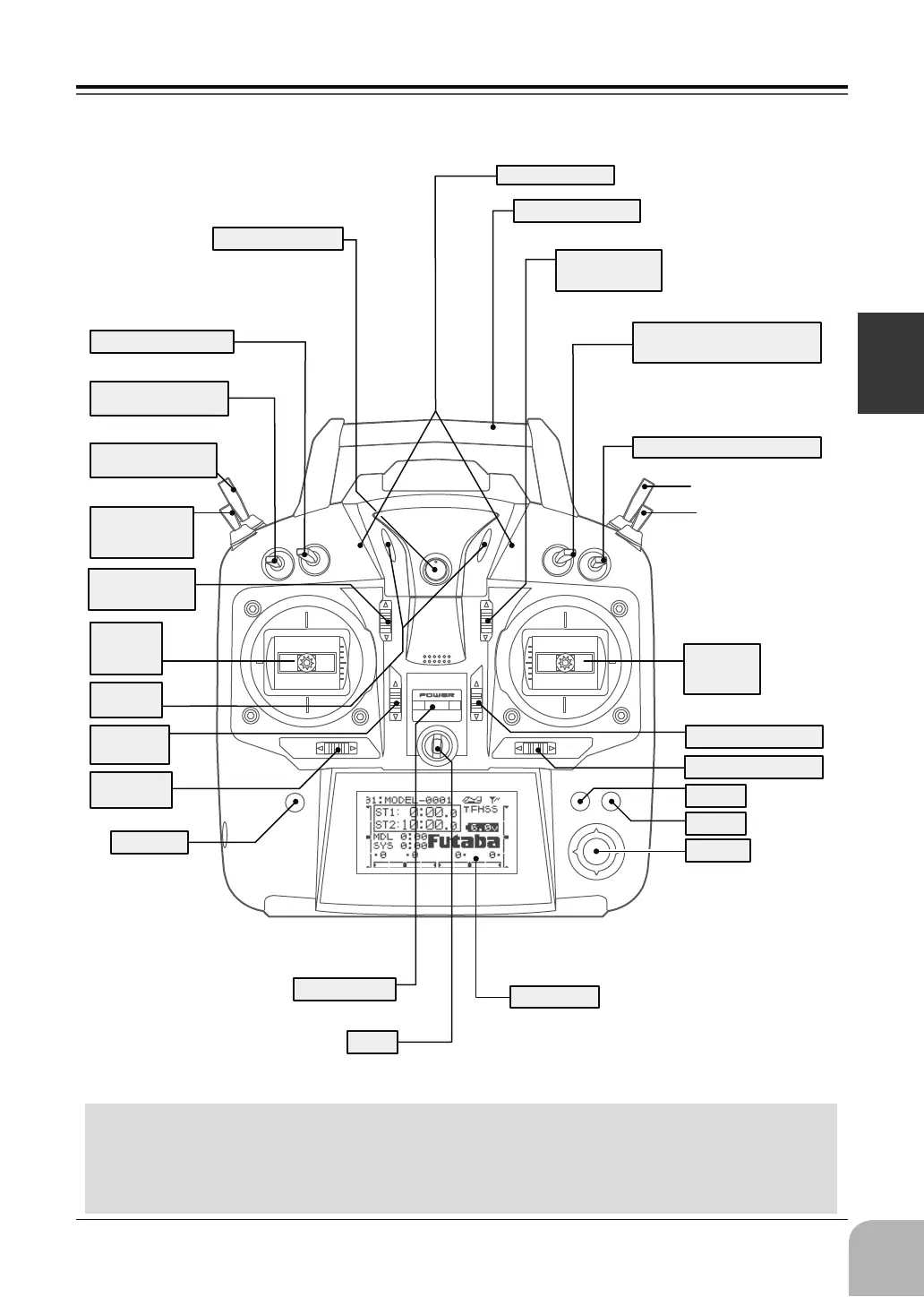

7KLV¿JXUHVKRZVWKHGHIDXOWVZLWFKDVVLJQPHQWVIRUD-$0RGHIRU86$V\VWHPDV
supplied by the factory.
You can change many of the switch positions or functions by selecting a new position
within the setting menu for the function you wish to move.
TRANSMITTERCONTROLS-AIRPLANE
